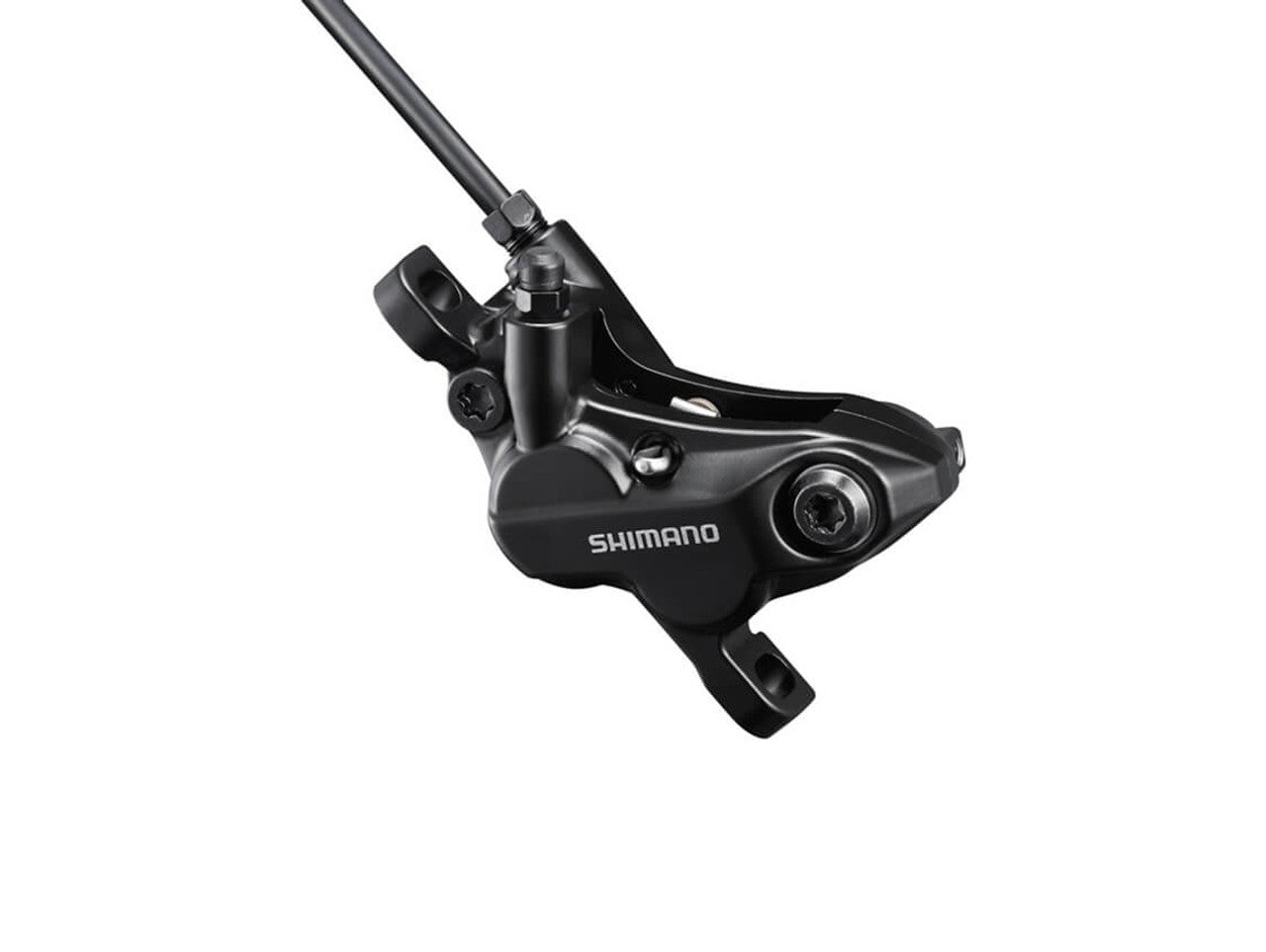

Shimano BR-MT520 Disc Brake 4 Piston MTB Caliper

The BR-MT520 4-Piston Disc Brake is Shimano's entry level 4 Piston Brake.

With a strong, 4-piston design, theBR-MT520hydraulic disc brake boosts rider confidence and enjoyment.They come with heat insulated pads and pistons for improved heat management and improved modulation from their sleek looking 4 piston design. These are an excellent choice for a wide range of applications including eBikes, Enduro and Trail Bikes.

Features

Wider contact area of dual diameter opposed-piston design

Four Piston Caliper

Highly responsive braking power for greater control

Rapid initial pad contact and controllable brake power modulation

Stable braking and greater durability

Sleek and durable master cylinder design

Heat insulated pad and piston

Specifications

Brake hose (Kit) SM-BH90-SS Brake Type Hydraulic disc brake Caliper fixing bolt/ Anti loosen method Snap Ring Caliper fixing bolt Tool size 5mm Hose joint Straight Mount Type Post Type Oil Shimano Mineral Oil One Way Bleeding Yes Pad Standard D03S resin | D02S Metal Pad Mount Split pin Recommendations Recommended brake lever:BL-MT501

Recommended disc brake rotor:SM-RT70 Compatibile Rotor Sizes 140mm, 160mm, 180mm, 203mm
