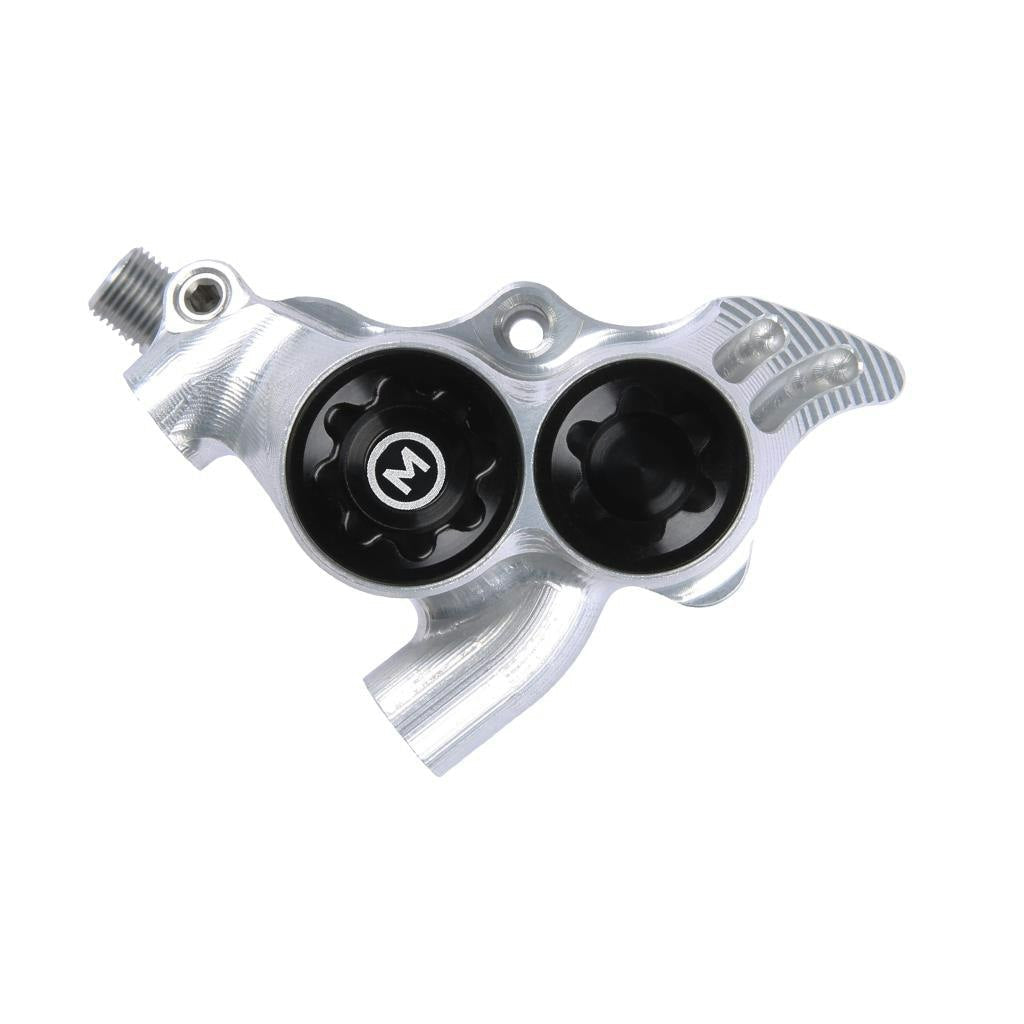

Hope RX4+ Caliper Flatmount Min - Silver

Hope RX4+ Caliper Flatmount Min - Silver

The RX4+ caliper supersedes the RX4 caliper and builds on 25 years’ experience designing and manufacturing hydraulic disc brakes and transfers the knowledge and skills acquired into the world of Road and Cyclocross dropbar brakes. A precision CNC machined monobloc design results in a stiffer caliper to give unrivalled feel and modulation.

We are keeping with the current model of offering a Postmount caliper, Flat Mount Front Direct and Flat Mount Rear Direct calipers with the addition of a new Flat Mount caliper.

The following calipers will now be available.

• RX4+ Postmount Not changing
• RX4+ Front Flat Mount Direct FMF +20mm
• RX4+ Rear Flat Mount Direct FM +20mm
• RX4+ Flat Mount: FM NEW!

Category Disc Brakes
Colour : Silver
Feature1 : Hydraulic Disc Brake
Feature2 : Mineral Fluid
Discipline : Road

Specification

• Calipers to suit dropbar set ups - Flat Mount front & rear & Post Mount

• Calipers designed to fit 140, 160 & 180mm rotors

• Dot Fluid Calipers will have Bore Caps with a D etched.

• Mineral Oil Caliper will have Bore Caps with an M etched.

• Slimline 4 piston lightweight design

• Monobloc design creates a stiffer caliper reducing the fuzzy lever feel and brake pad rub

• Top entry pad fitting

• CNC machined from 2014 T6 aluminium

***Please note***Shimano and SRAM brands belong to a third party and have no relation with Hope Technology'

Calipers for Mineral Oil will have M etched on the Bore Cap.
Calipers for Dot Fluid will have D etched on the Bore Cap.

RX4+ Caliper is designed to work with Shimano and Campagnolo dropbar brake systems
(Mineral Oil, Shimano recommended for Shimano application, Campagnolo/Magura recommended for Campagnolo)

• Dura Ace Di2 R9170

• Dura Ace R9120

• Ultegra Di2 R8070

• Ultegra R8020

• 105 R7020

• Di2 R785

• RS685

• GRX RX810

• GRX RX600

• GRX RX400

• GRX RX815 Di2

• GRX RX817 Di2

Campagnolo Compatible Calipers (RX4+)
Super Record
Record
Campagnolo H11

RX4+ Designed to work with Sram dropbar brake systems (Dot Fluid)

• Sram Red eTap AXS

• Sram Red

• Sram Force eTap AXS

• Sram Force

• Sram Rival

• Sram Apex

• Sram S900
• HBSPC71N

• HBSPC71B

• HBSPC71C

• HBSPC71PU

• HBSPC71R

• HBSPC71S

• HBSPC75

• HBSPC75N

• HBSPC75B

• HBSPC75C

• HBSPC75PU

• HBSPC75R

• HBSPC75S
