TranzX EDP01 Wireless Electronic Dropper Seatpost 150mm Travel 31.6mm x 445mm

TranzX EDP01 Wireless Electronic Dropper Seatpost 150mm Travel 31.6mm x 445mm

The TranzX EDP01 Wireless Electronic Dropper Post offers a clean, cable-free setup with reliable wireless control for modern mountain bikes.

Using Bluetooth 5.0 connectivity, the handlebar remote communicates wirelessly with the dropper post, allowing quick saddle height adjustment at the push of a button. By eliminating the need for a cable between the lever and the post, installation is simple and the bike maintains a tidy cockpit with reduced maintenance.

The EDP01 features a sealed adjustable air cartridge for smooth and consistent operation, along with an automotive-grade IPX6 water resistance rating to handle wet riding conditions. A rechargeable lithium-ion battery powers the system and delivers thousands of activations per charge.

Designed with a 0mm offset post head and a secure 2-bolt saddle clamp, the EDP01 provides stable saddle positioning and dependable performance for trail and mountain bike riding.

Key Features:

• Wireless electronic dropper post with Bluetooth 5.0 connectivity

• 150mm travel for quick saddle height adjustment

• Cable-free design for simple installation

• Sealed adjustable air cartridge for smooth performance

• IPX6 water resistance for reliable operation in wet conditions

• Rechargeable lithium-ion battery system

• 0mm offset post head with secure 2-bolt saddle clamp

• Handlebar remote powered by CR2032 battery

Compatibility:

Designed for bikes using a 31.6mm seatpost diameter.

Specifications:

• Model: EDP01

• Type: Wireless Electronic Dropper Seatpost

• Travel: 150mm

• Diameter: 31.6mm

• Length: 445mm

• Offset: 0mm

• Connectivity: Bluetooth 5.0

• Water Resistance: IPX6

Battery:

• Battery Type: Rechargeable Lithium-ion

• Battery Voltage: 7.4V (nominal)

• Battery Capacity: 240mAh

• Battery Size: 40.5 × 19.0 × 21.2mm

• Battery Weight: 20.5g

• Estimated Range: Over 6,000 activations per full charge

Charger:

• Charge Voltage: 8.4V

• Charge Current: 240mA

• Charge Time: Approx. 90 minutes

• Power Source: 5V DC USB

• Plug Type: USB Type-C

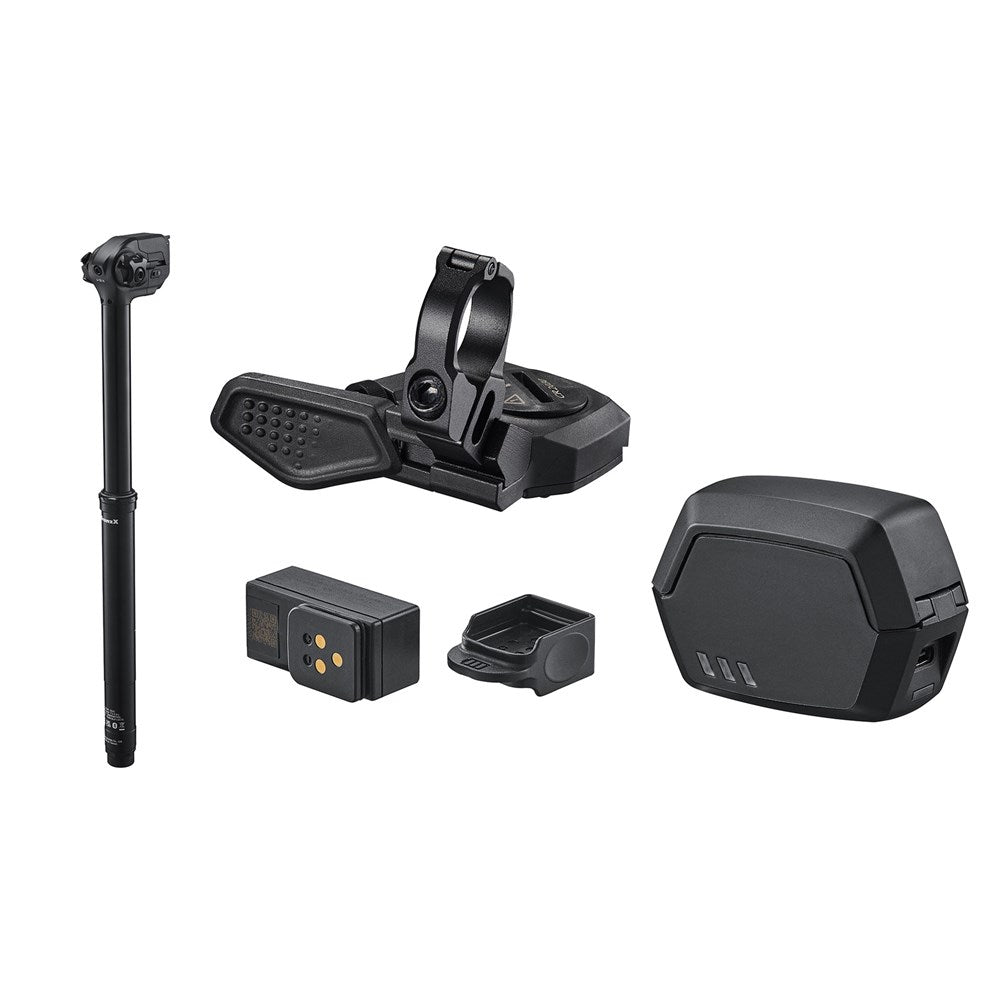

What’s in the Box:

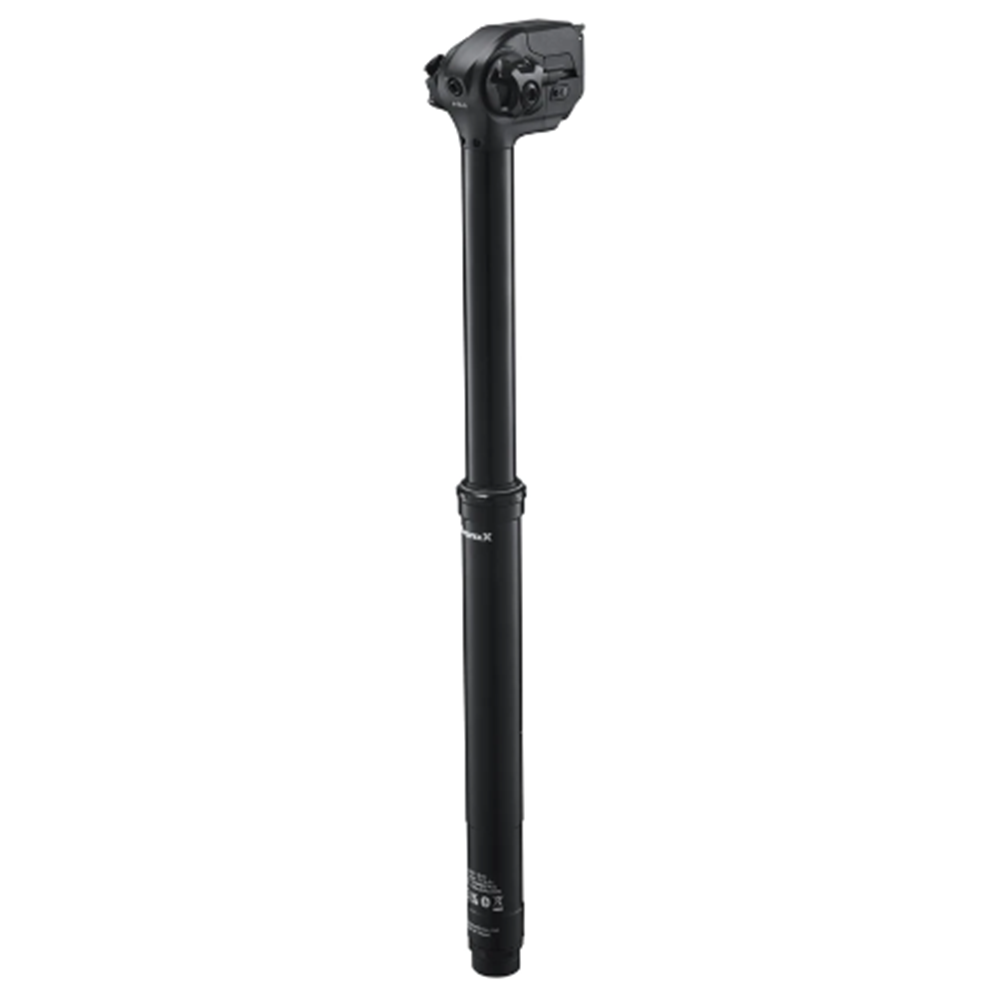

• TranzX EDP01 Wireless Dropper Post

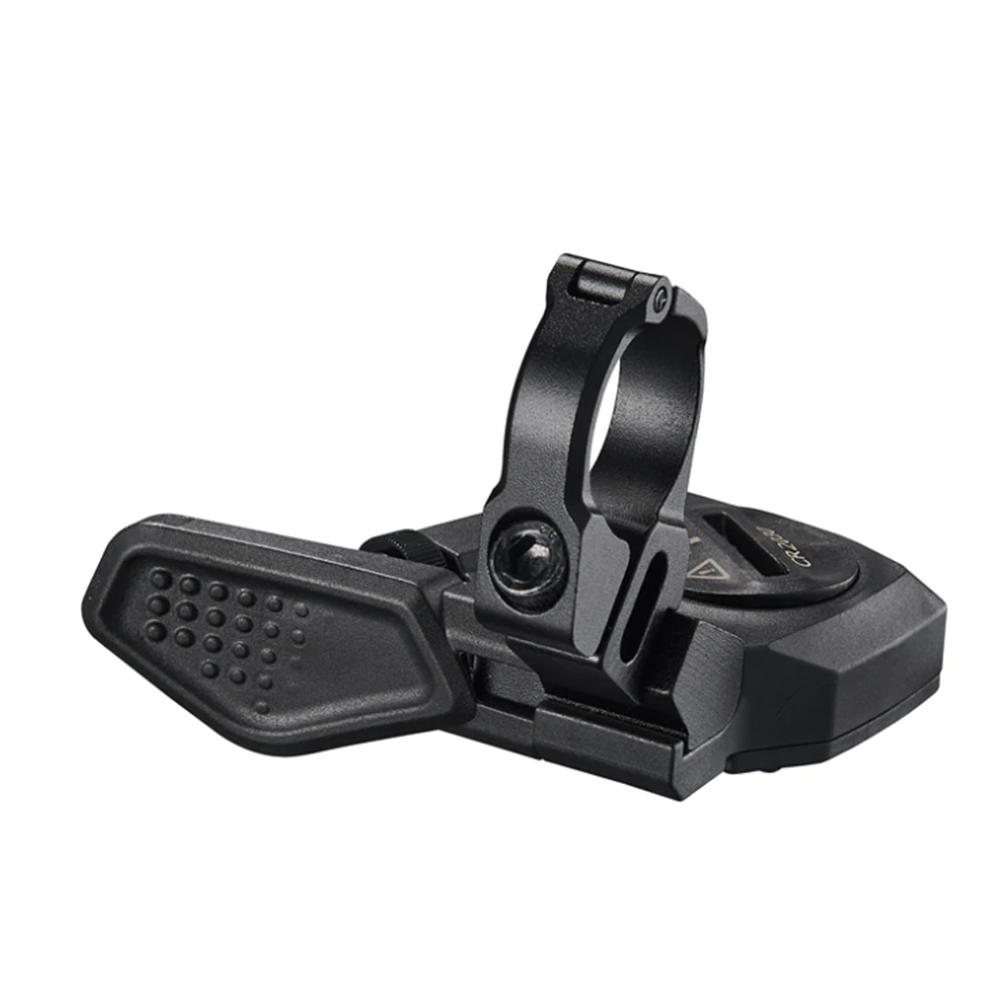

• EDP01 Remote Lever with 22mm Clamp

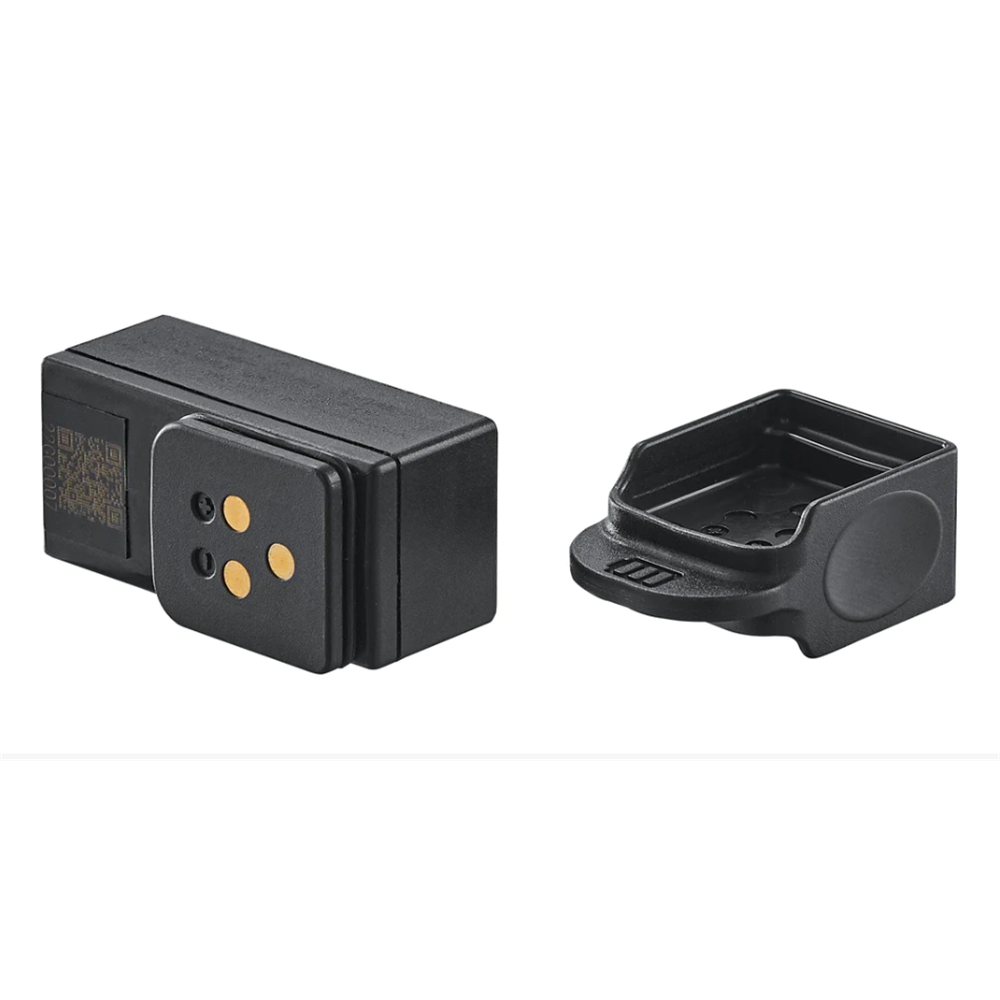

• Rechargeable Lithium-ion Battery

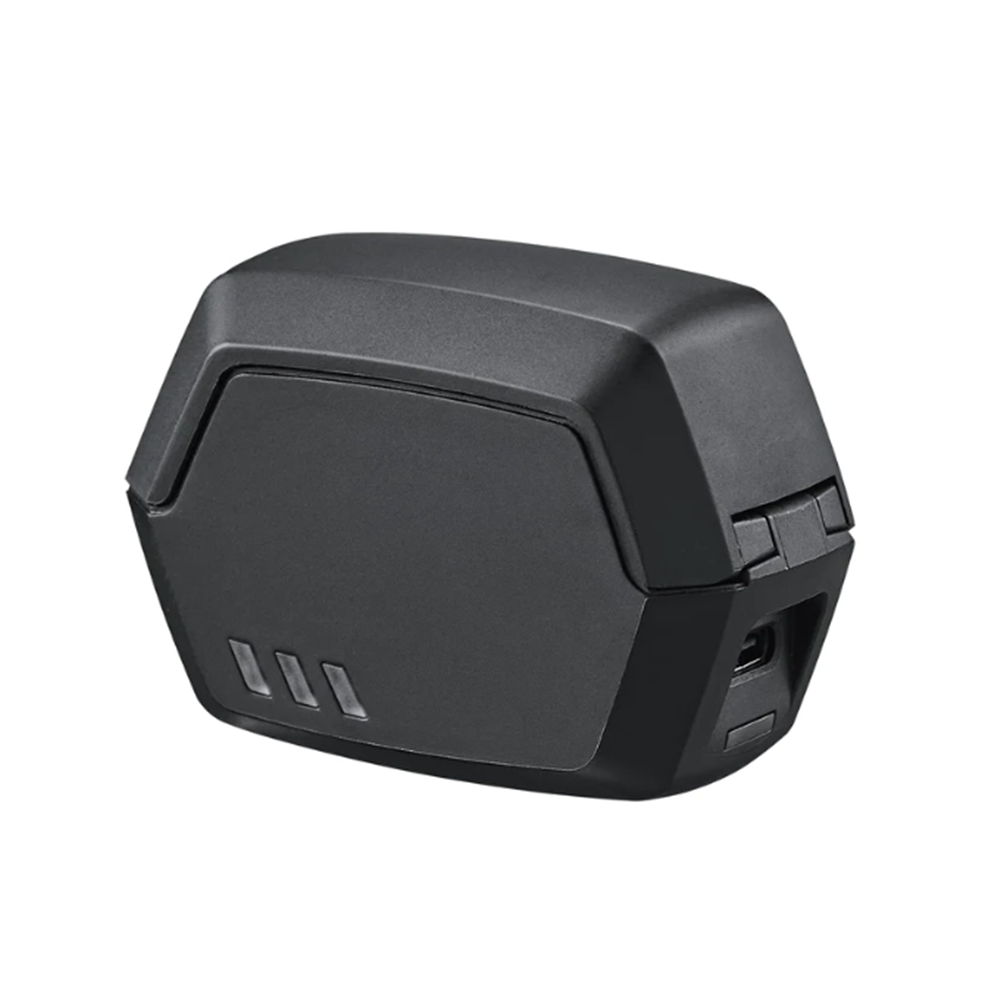

• Charging Case

• Required Charging Cables

• CR2032 Battery for Remote

WARNING — KEEP BATTERIES OUT OF REACH OF CHILDREN
