Product Details

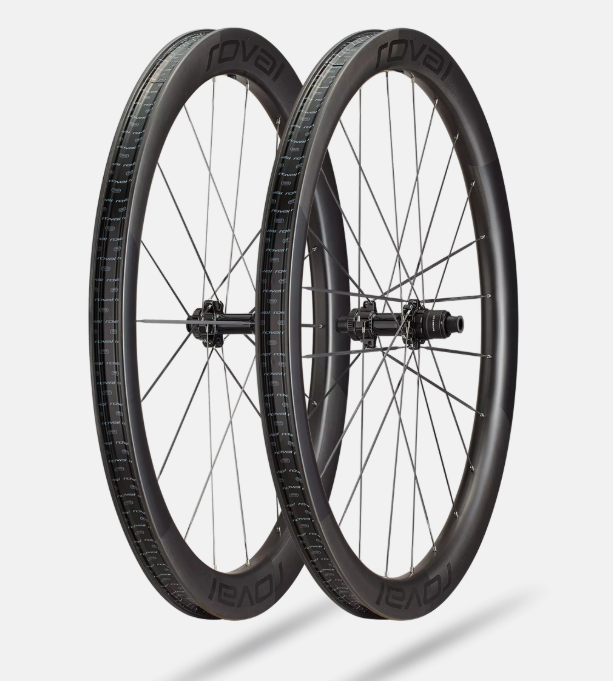

Terra Aero CLX
Gravel racing now demands the same level of aerodynamic discipline historically reserved for World Tour races. Riders are pushing deeper into speed ranges where aero drag matters—and they’re doing it on rougher terrain with bigger tires. Up to 5.84 watts faster than the previous generation, with a first-of-its-kind 50mm Chopped Aero Speed design.
At a Glance
Use
Gravel Racing
Weight
1,340g with tape & valves
Rim Depth & Width
50mm / 45mm F/R external, 38.5mm external width
Hub & Engagement
DT Swiss 180 EXP internals, 36T
Spokes
Roval Aero Composite Spokes by ARRIS
Technical Specifications
- Wheel Size / ETRTO
- 622 × 27 (700c)
- Tubeless Compatibility
- Yes
- Insert Compatibility
- Yes
- Brake Compatibility
- Disc (Centerlock)

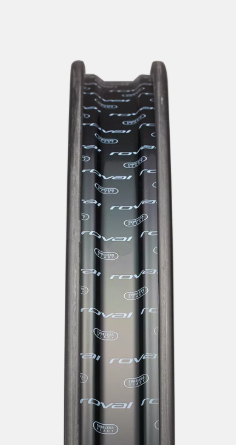

- Rim Construction
- Carbon Clincher Hooked
- Valve Stem Length
- Roval Tubeless Valve, Alloy 70mm (Front) 60mm (Rear)
- Hole Count
- Front: 18H, Rear: 24H

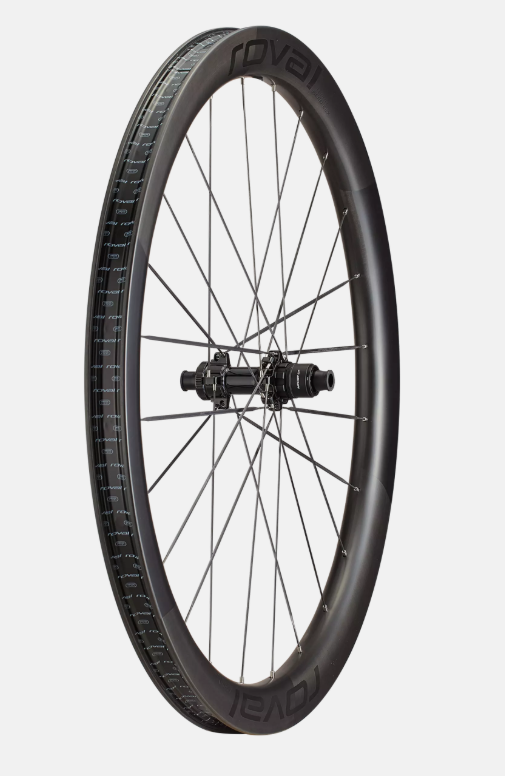

- Rear Rim
- Terra Aero CLX Carbon Clincher Rear, 700c (CR2571)
- Rear Rim Dimensions
- Depth: 45mm, External Width (at widest point): 38.4mm, Internal Width: 27mm, Bead Hook Width: 5.38mm

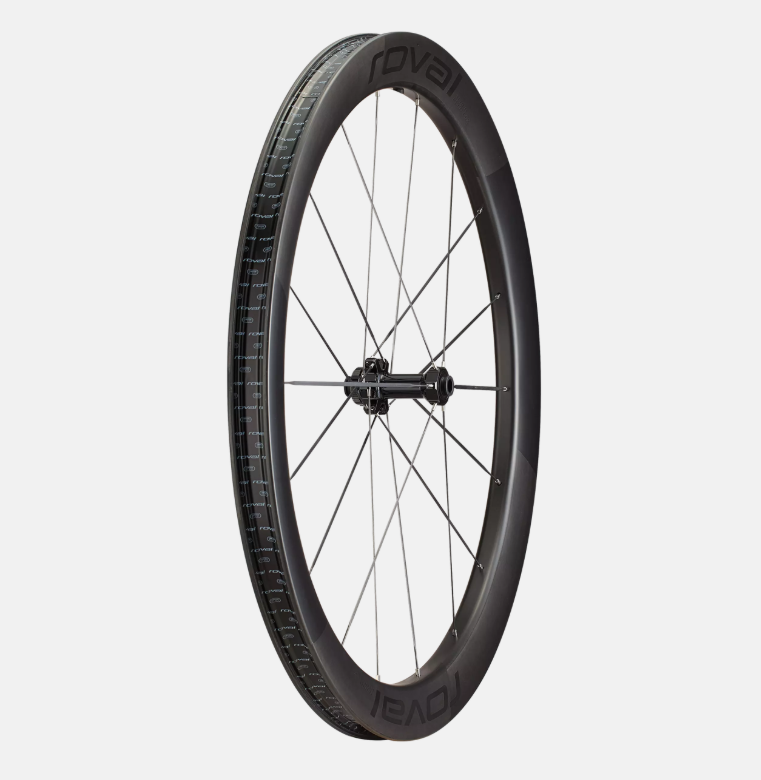

- Front Rim
- Terra Aero CLX Carbon Clincher, 700c (CR2570)
- Front Rim Dimensions
- Depth: 50mm, External Width (at widest point): 38.5mm, Internal Width: 27mm, Bead Hook Width: 5.38mm
- Rear Hub
- Roval Low Flange Road Hub, Center Lock, 12x142mm, (LF19-R)
- Rear Freehub Body
- DT Swiss Ratchet EXP (36T ): Sram XD-R
- Rear Hub Bearing
- DT Sinc Ceramic Bearings - DS:1526 (15 x 26 x 7mm), NDS: 6802 (15 x 24 x 5mm)
- Front Hub
- Roval Low Flange Road Hub, Center Lock, 12x100mm, 19mm OD End Caps Installed (LF18-F)
- Front Hub Bearing
- DT Sinc Ceramic Bearings - DS: 6802 (15 x 24 x 5mm), NDS: 6802 (15 x 24 x 5mm)
- Nipples
- ARRIS MK4 Spoke Nipple Alloy, 6mm
- Rear Spokes
- Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 24qty, (DS: 280mm, NDS: 276mm)
- Rear Lacing Pattern
- One-Cross / Three-Cross (2:1), Not Tucked
- Front Spokes
- Roval by ARRIS, Composite Aero Spoke with Ti End Pieces: T-head, 18qty, (DS: 264mm, NDS: 274mm)
- Front Lacing Pattern
- Two-Cross / Radial (2:1), Not Tucked
- Tubeless Tape Width
- 30mm
- Tire Type
- Clincher Tubeless and Clincher Tube Type
- Design Tire
- Tracer TLR 45mm
- Approved Tire Widths
- 35mm-60mm (2.2")
- Max Pressure
- 35mm – 70psi, 36-45mm – 55psi, 46-50mm – 45psi, 51-60mm - 40psi
- Wheelset Weight
- 1340g (with valves and tape)
- Rear Weight
- 700g (with valves and tape)
- Front Weight
- 640g (with valves and tape)
- Warranty
- Limited Lifetime Warranty
- Assembly Method
- Hand Built
- Weight Limit
- 275 lbs / 125 kg
- Certifications
- ISO 5775-2, UCI Approved
- E-bike Approved
- No
- Extras
- 4 Extra Spokes and Nipples, Roval Wheel Bag, Shimano HG 11/12-Spd. Road Freehub & end Caps (rear wheel only)
