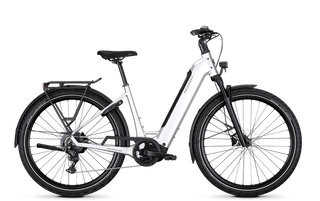

2026 Kalkhoff Endeavour 3 Move Wave

Kalkhoff Endeavour 3 Move

Frameset

Frame
Integrale 3 aluminium frame

Fork
SR Suntour NEX E25 HLO, lockout, approx. 63mm travel

Motor & Battery

Motor
Bosch Performance Line Smart System, 75Nm

Battery
Bosch PowerTube 500Wh

Display
Bosch Intuvia 100 with LED Remote

Range
Up to approx. 115km

Drivetrain

Shifters
Shimano Alivio 9-speed

Rear Derailleur
Shimano Alivio 9-speed

Cassette
Shimano HG200

Chain
KMC X9

Crankset
Aluminium, 42T

Brakes

Brakes
Shimano MT200 hydraulic disc brakes

Brake Rotors
Front: 180mm
Rear: 160mm

Wheels & Tyres

Wheel Size
27.5" / 29" (size dependent)

Tyres
Schwalbe Energizer Plus Tour, 50-622

Rims
High-profile aluminium, eyeleted

Hubs
Shimano TX505

Cockpit & Components

Handlebar
Tour-style aluminium

Stem
Aluminium, adjustable

Grips
Ergon GP10

Saddle
Selle Royal Nuvola Unitec

Seatpost
Aluminium

Pedals
Comfort aluminium

Accessories

Lights
Front: Herrmans H-Black MR4 LED
Rear: Herrmans H-Trace LED

Rack
MIK-compatible integrated rear carrier

Mudguards
Yes

Kickstand
Yes

Lock
Frame lock

Weight & Limits

Max System Weight
Approx. 130kg–150kg (model dependent)
