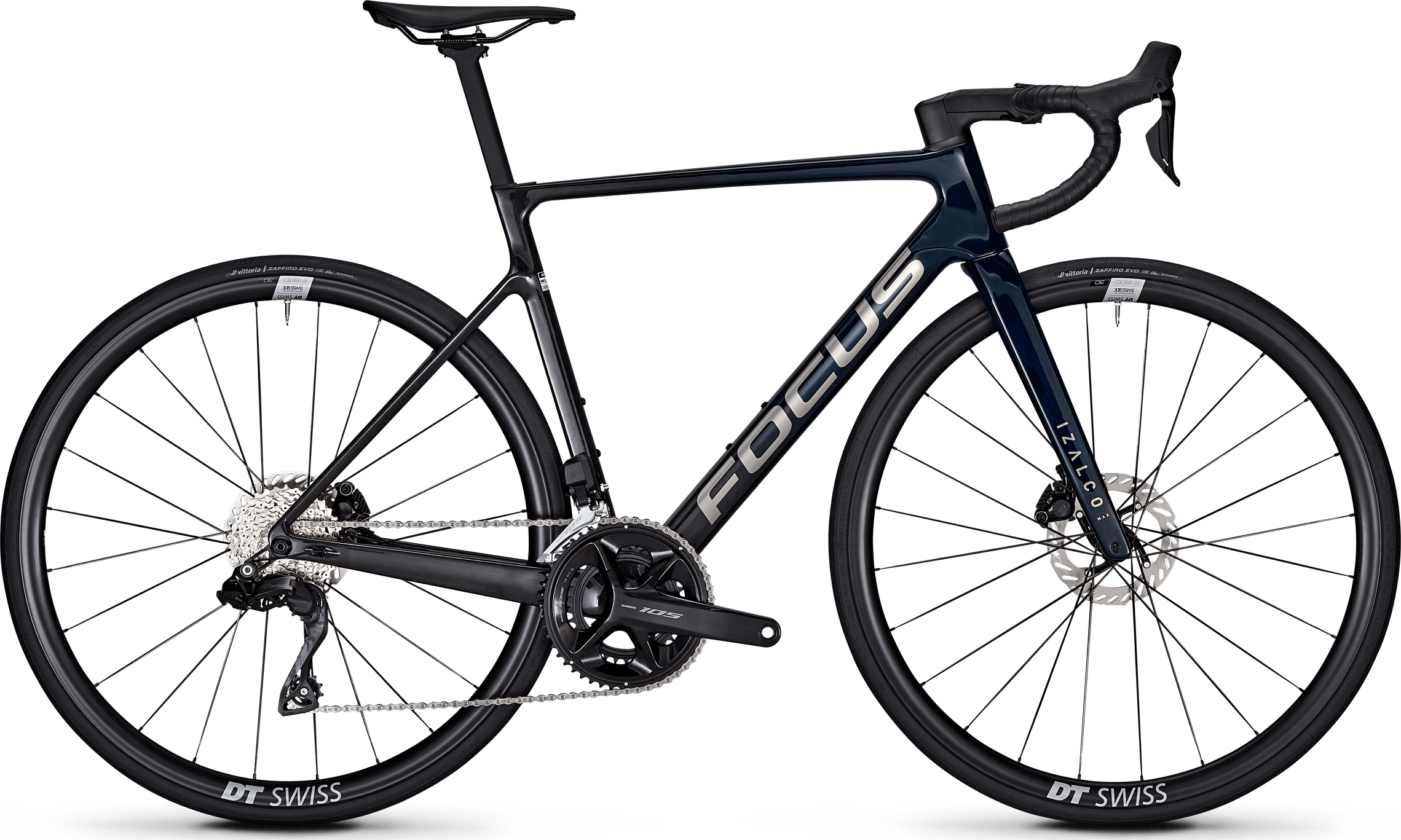

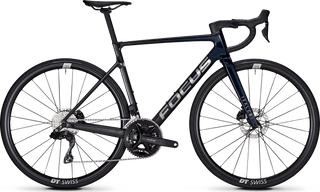

IZALCO MAX 8.8 Features
Aero carbon frame (1,050 g)
Electronic Shimano 105 Di2 2x12 shifting
DT Swiss E1800 aluminium wheels
Makes you faster
-
Aero gains
The refined and wind tunnel-approved NACA-shapes (National Advisory Committee for Aeronautics) make our frame highly aerodynamic. At the same time, the frame only weighs 865 g for frame size M with an additional 400 g for the fork.
-
7 sizes for a perfect fit
The IZALCO MAX is available in seven sizes. In combination with the stem, which we offer in six lengths from 70 to 120 mm, it really does have all the sizes for each and every one of you.
-
Effortless handling and maximum stiffness
To enable you to get that extra power on the road, the bottom bracket is optimised for stiffness, and the fork for lateral stiffness. Together with a bold geometry for easier cornering, especially at high speeds, the IZALCO MAX is the road bike for all ambitions.
Frame
Carbon technology, disc, 142x12 mm thru axle, flat mount 160/140 mm
Shifter
Shimano 105 Di2 ST-R7170
Front derailleur
Shimano 105 Di2 FD-R7150
Rear derailleur
Shimano 105 Di2 RD-R7150, 12-speed
Cassette
Shimano CS-R7101, 11-34T
Crankset
Shimano 105 FC-R7100, 50/34T
Bottom bracket
Shimano Pressfit Road BB86
Handlebar
FOCUS Road Bar, alloy, 74 mm, 116 mm, 4°
Stem
FOCUS C.I.S. 2.0 integrated, -8°, with Garmin / Wahoo-Mount
Headset
ACROS IS 52/ IS52 (ICR), FOCUS integrated C.I.S.
Seatpost
FOCUS Aero Carbon, D-shape, set-back: 0 mm: XXS-L, 15mm: XL-XXL
Brakes front | rear
Shimano 105 BR-R7170 | -
Disc brake rotors
Shimano CL700, front: 160 mm / rear: 160 mm
Shimano RT-CL700, front: 160 mm / rear: 160 mm
Wheelset
DT Swiss E 1800, alloy, rim height: 30 mm, width: 22-622
Tyres front | rear
Vittoria Zaffiro Evo, 28-622 | Vittoria Zaffiro Evo, 28-622
Permissible system weight
110 kg
