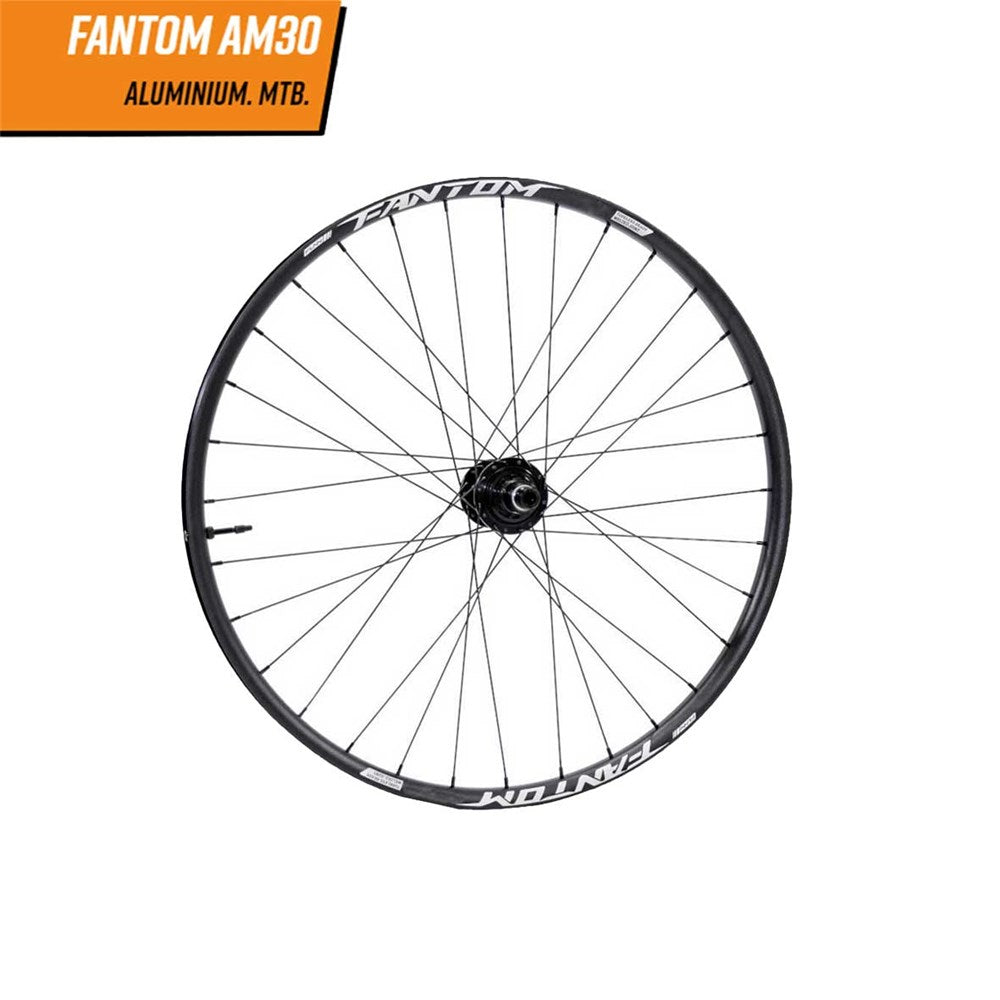

FUNN Fantom AM30 Front Wheel 29" - Black

FUNN Fantom AM30 Front Wheel 29"

The FUNN Fantom Wheelset is designed for riders who want a lightweight, fast-rolling wheelset capable of handling everything from gravel and cross-country rides to demanding trail adventures.

This wheelset combines Funn Fantom hubs and Fantom rims to deliver a strong, responsive, and durable wheelset built for modern mountain bikes. The rim features a lightweight welded AL6066 construction with a 30mm external / 25mm internal width, offering the perfect balance of speed, stability, and tyre support.

At the centre of the wheelset is the precision-engineered Fantom hub, constructed from AL6061 alloy and equipped with a 6-pawl, 102-tooth quick engagement system. This design provides fast power transfer and reliable engagement, helping riders maintain momentum on climbs and technical terrain.

The Fantom wheels are tubeless-ready and come supplied with tubeless rim tape and valves, making setup easy while improving traction, comfort, and puncture protection.

Designed for modern Boost axle standards, the Fantom wheelset delivers the durability, speed, and control riders need for long days on the trail.

Key Features:

• Designed for Gravel, Trail, and XC riding
• Lightweight welded AL6066 alloy rims
• 30mm external / 25mm internal rim width for balanced tyre support
• Fantom hub with 6-pawl 102T quick engagement
• Tubeless-ready with rim tape and valves included
• Double-butted spokes with brass nipples
• Durable sandblasted anodised black finish

Specifications:

Wheelset

• Wheel Size: 29"
• Weight: 1905g (Boost)
• Spoke Count: 32H Front / 32H Rear
• Valve Type: Presta
• Tubeless Ready: Yes (Tape and 2 Valves Included)

Axle Standards

• Front Axle: 15 x 110mm Boost
• Rear Axle: 12 x 148mm Boost

Rim

• Material: Welded 6066 Alloy
• External Width: 30mm
• Internal Width: 25mm
• Rim Depth: 23mm
• Rim Eyelet: No
• Finish: Sandblasted Anodised Black
• ERD: 594mm
• ETRTO: 622 × 30

Hub

• Hub Body: 6061 Alloy
• Engagement: 6 Pawl / 102T Quick Engagement
• Cassette Compatibility: Shimano HG / SRAM XD / Shimano Micro Spline

Spokes

• Spoke Type: Double-butted
• Spoke Count: 32H
• Nipples: Brass
