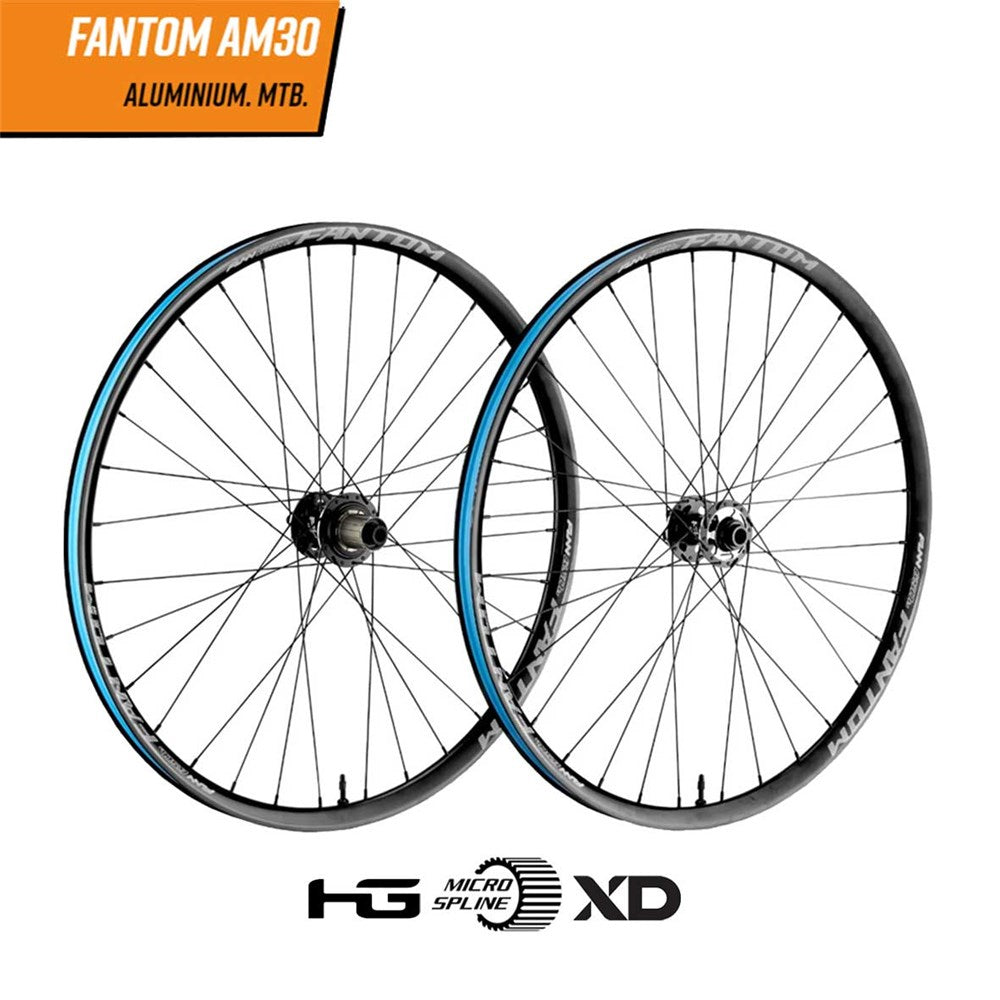

FUNN Fantom AM30 Wheelset 27.5" Boost Shimano Micro Spline Tubeless Ready

FUNN Fantom AM30 Wheelset 27.5" Boost Shimano Micro Spline Tubeless Ready

The FUNN Fantom AM30 Wheelset is designed for riders looking for a lightweight, fast-rolling wheelset built for XC, gravel, and trail riding. With a balanced rim profile and durable construction, the AM30 offers excellent efficiency, control, and reliability for modern mountain bikes.

The Fantom AM30 rim features a 30mm external and 25mm internal width, providing the perfect combination of speed, tyre support, and handling stability. This design improves traction and cornering performance while maintaining a responsive ride feel.

At the centre of the wheelset is the precision-engineered Fantom hub, constructed from AL6061 alloy and featuring a 6-pawl, 102-tooth quick-engagement system. This ensures fast power transfer and responsive engagement when climbing or accelerating.

The rim is made from welded AL6066 alloy with a sandblasted anodised black finish, offering excellent strength while keeping overall weight low.

The wheelset is tubeless-ready and supplied with tubeless rim tape and valves, allowing riders to run lower tyre pressures for improved traction, comfort, and puncture resistance.

Key Features:

• Designed for Gravel, Trail, and XC riding
• Lightweight welded AL6066 alloy rims
• 30mm external / 25mm internal rim width for balanced performance
• Fantom hub with 6-pawl 102T quick engagement
• Tubeless-ready with rim tape and valves included
• Double-butted spokes with brass nipples
• Durable sandblasted anodised black finish

Specifications:

Wheelset

• Wheel Size: 27.5"
• Weight: 1835g (Boost)
• Spoke Count: Front 32H / Rear 32H
• Valve Type: Presta
• Tubeless Ready: Yes (Tape and Valves Included)

Axle Standards

• Front Axle: 15 × 110mm Boost
• Rear Axle: 12 × 148mm Boost

Rim

• Material: Welded 6066 Alloy
• External Width: 30mm
• Internal Width: 25mm
• Rim Depth: 23mm
• Rim Eyelet: No
• Finish: Sandblasted Anodised Black
• ERD: 557mm
• ETRTO: 584 × 30

Hub

• Hub Body: 6061 Alloy
• Engagement: 6 Pawl / 102T Quick Engagement
• Cassette Compatibility: Shimano Micro Spline
• Convertible Freehub System

Spokes

• Type: Double-Butted
• Count: 32H per wheel
• Nipples: Brass
