TranzX EDP01 Wireless Electronic Dropper Seatpost 170mm Travel 30.9mm x 485mm

TranzX EDP01 Wireless Electronic Dropper Seatpost 170mm Travel 30.9mm x 485mm

The TranzX EDP01 Wireless Electronic Dropper Post delivers a clean, cable-free setup with reliable wireless control for modern mountain bikes.

Using Bluetooth 5.0 connectivity, the handlebar remote communicates wirelessly with the dropper post, allowing quick saddle height adjustment at the press of a button. By removing the need for cable routing between the lever and the post, installation is simpler and long-term maintenance is reduced.

The EDP01 features a sealed adjustable air cartridge for smooth operation and an automotive-grade IPX6 water resistance rating to help handle wet riding conditions. A rechargeable lithium-ion battery powers the system and provides thousands of activations on a single charge.

With a 0mm offset post head and secure 2-bolt saddle clamp, the EDP01 offers stable saddle positioning and dependable performance for trail and mountain bike riding.

Key Features:

• Wireless electronic dropper post with Bluetooth 5.0 connectivity

• 170mm travel for fast on-the-fly saddle height adjustment

• Cable-free design for simple installation

• Sealed adjustable air cartridge for smooth operation

• IPX6 water resistance for reliable performance in wet conditions

• Rechargeable lithium-ion battery system

• 0mm offset post head with secure 2-bolt saddle clamp

• Handlebar remote powered by CR2032 battery

Compatibility:

Designed for bikes using a 30.9mm seatpost diameter.

Specifications:

• Model: EDP01

• Type: Wireless Electronic Dropper Seatpost

• Travel: 170mm

• Diameter: 30.9mm

• Length: 485mm

• Offset: 0mm

• Connectivity: Bluetooth 5.0

• Water Resistance: IPX6

Battery:

• Battery Type: Rechargeable Lithium-ion

• Battery Voltage: 7.4V (nominal)

• Battery Capacity: 240mAh

• Battery Size: 40.5 × 19.0 × 21.2mm

• Battery Weight: 20.5g

• Estimated Range: Over 6,000 activations per full charge

Charger:

• Charge Voltage: 8.4V

• Charge Current: 240mA

• Charge Time: Approx. 90 minutes

• Power Source: 5V DC USB

• Plug Type: USB Type-C

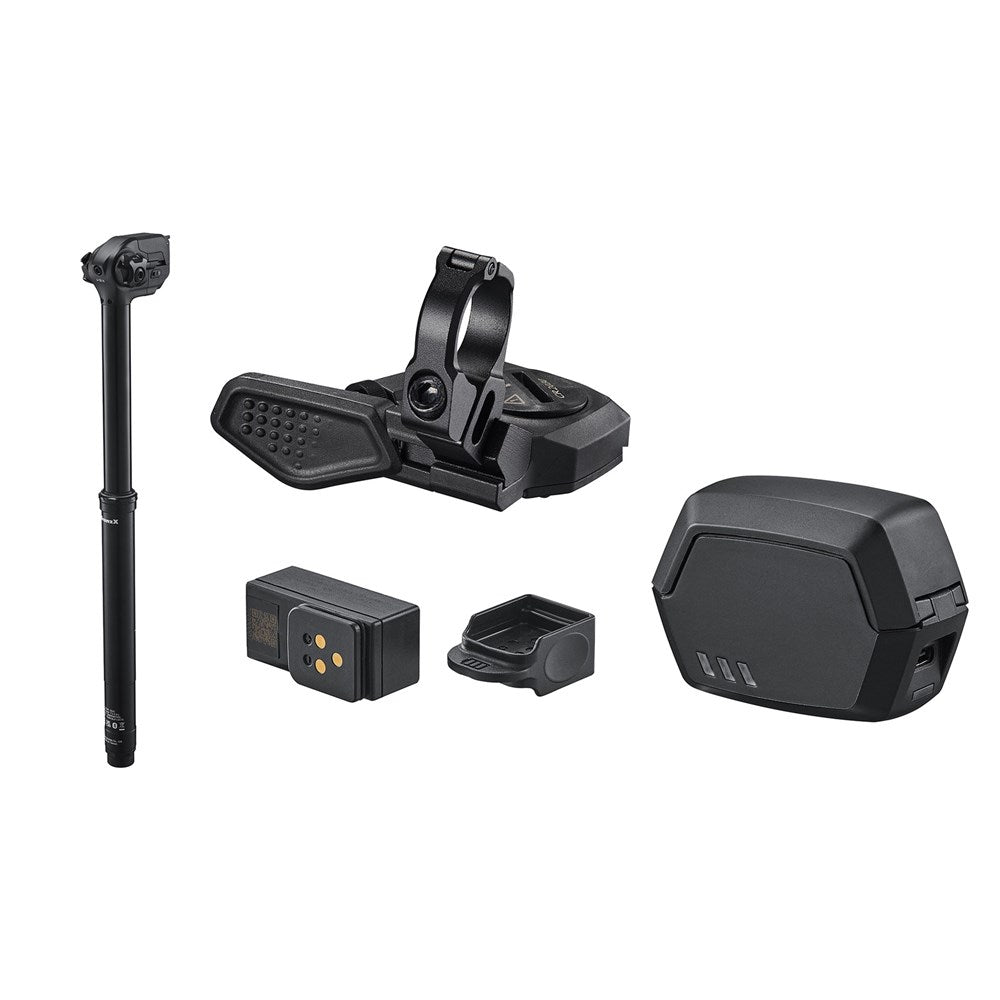

What’s in the Box:

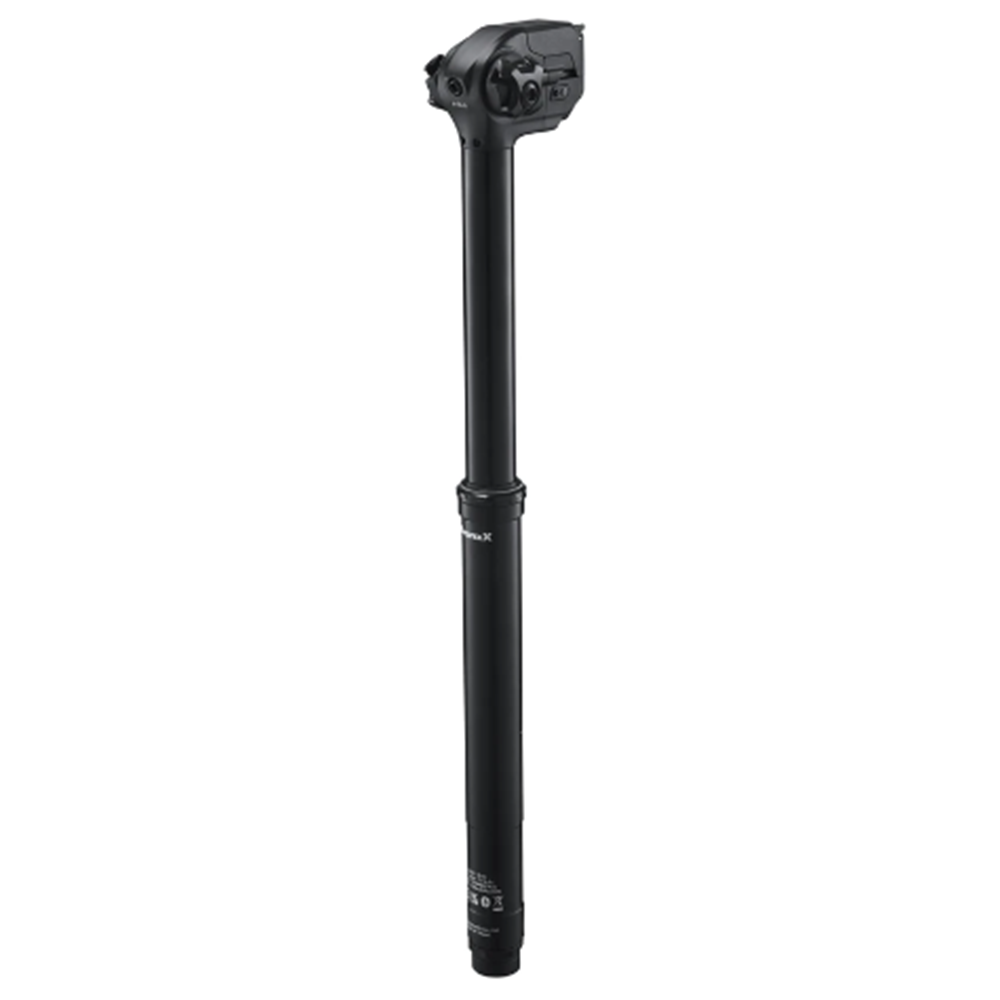

• TranzX EDP01 Wireless Dropper Post

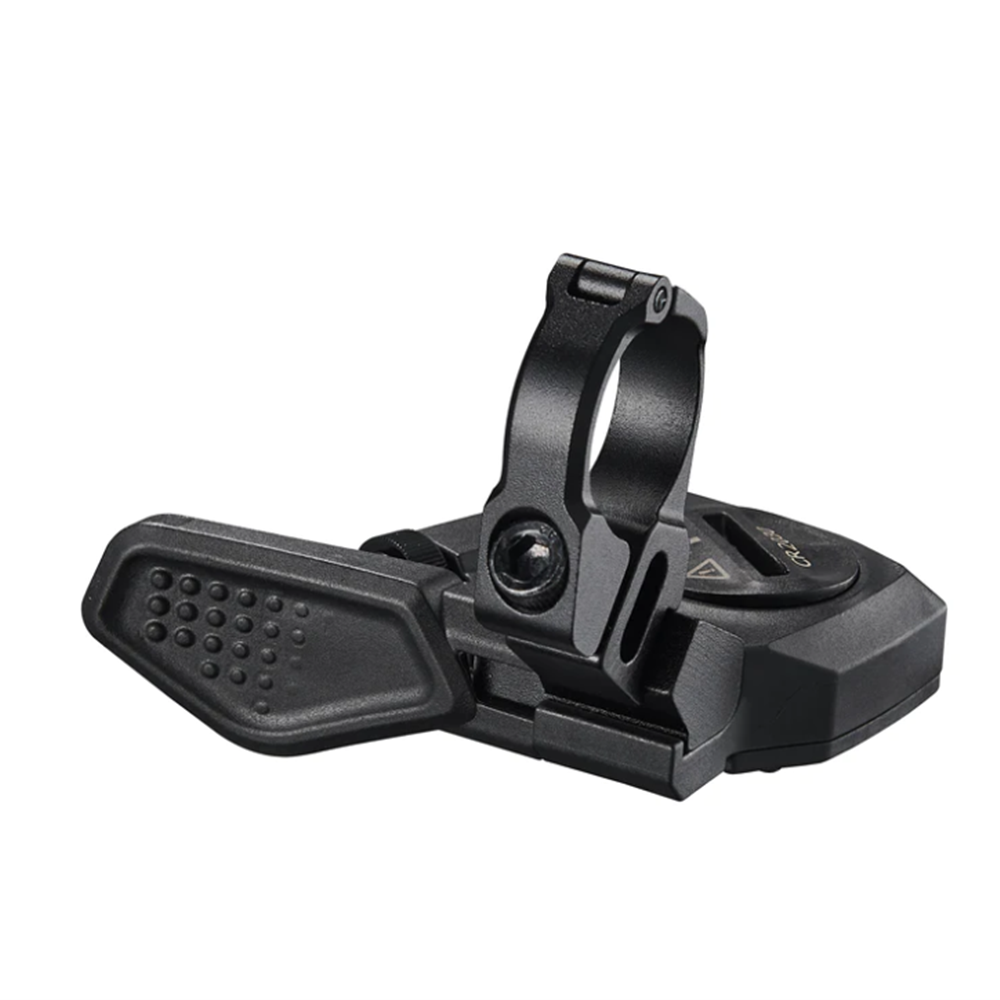

• EDP01 Remote Lever with 22mm Clamp

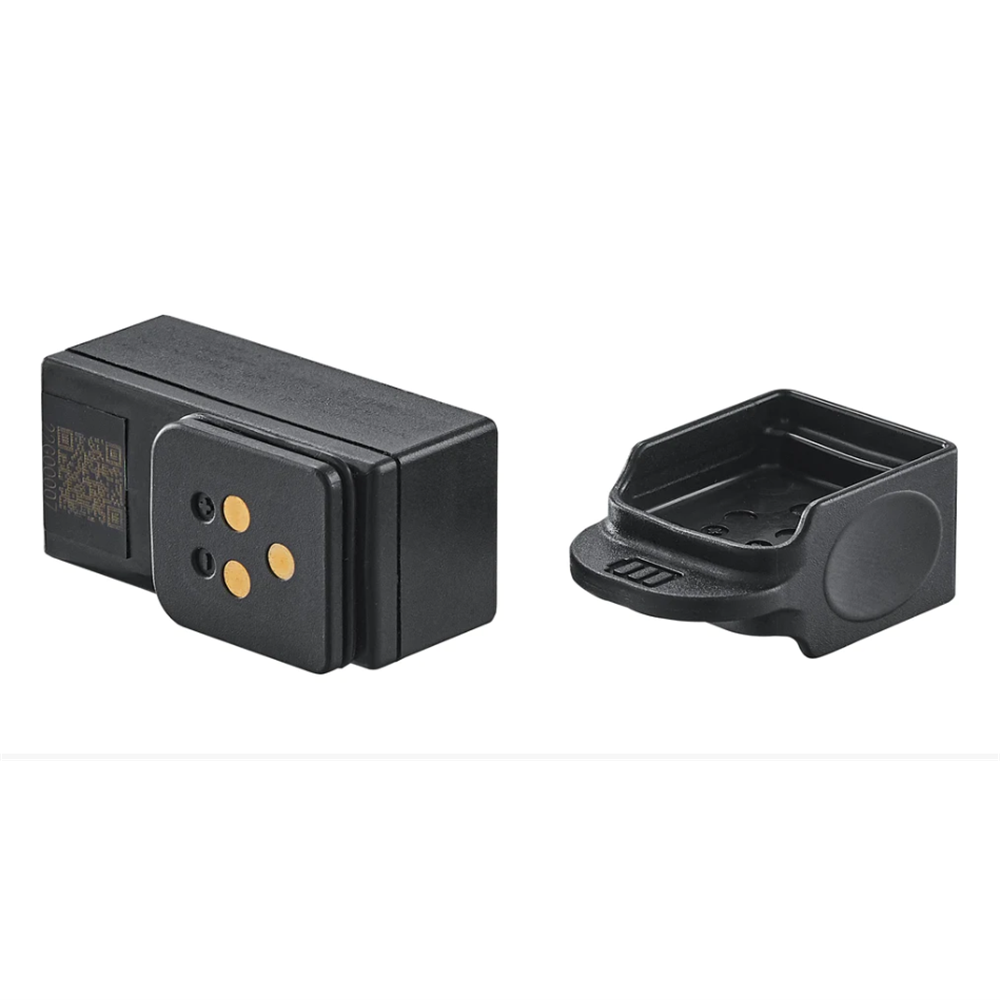

• Rechargeable Lithium-ion Battery

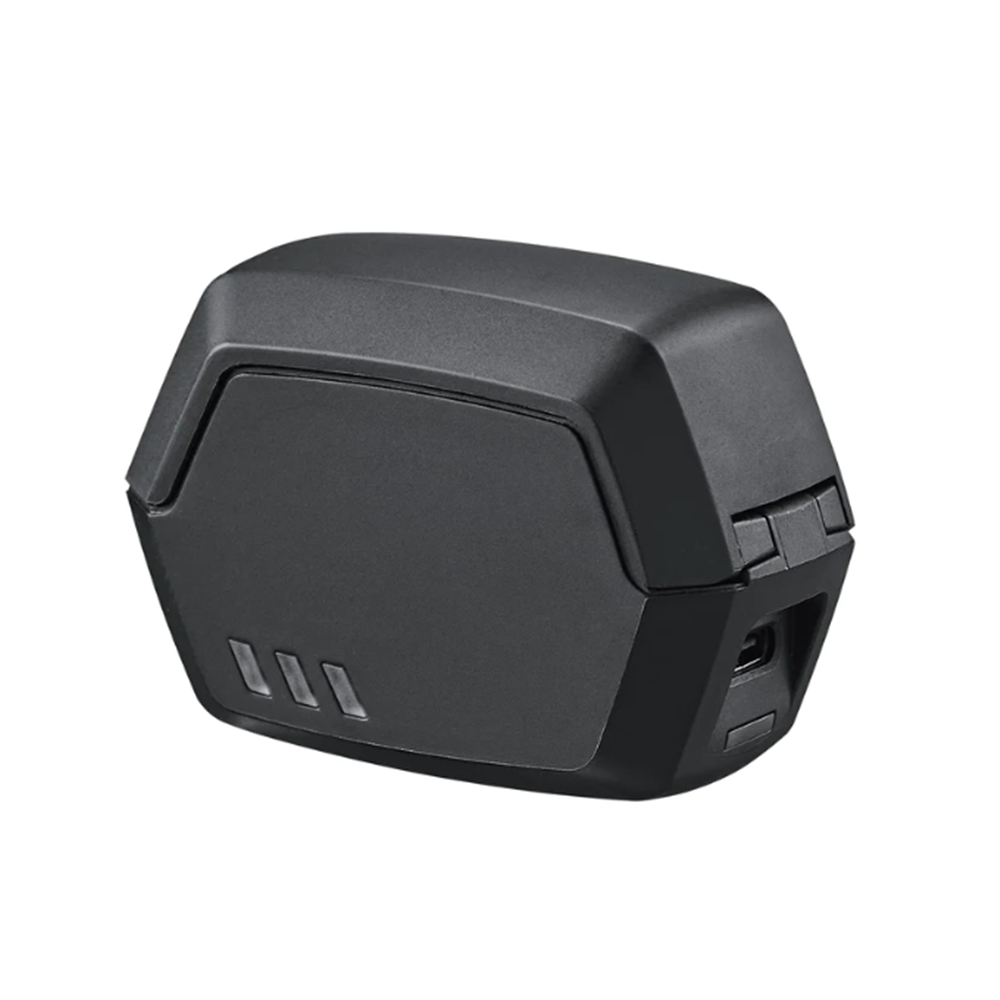

• Charging Case

• Required Charging Cables

• CR2032 Battery for Remote

WARNING — KEEP BATTERIES OUT OF REACH OF CHILDREN
