TranzX EDP01 Wireless Electronic Dropper Seatpost 200mm Travel 30.9mm x 545mm

TranzX EDP01 Wireless Electronic Dropper Seatpost 200mm Travel 30.9mm x 545mm

The TranzX EDP01 Wireless Electronic Dropper Post delivers cable-free convenience with reliable wireless control for modern mountain bike setups.

Using Bluetooth 5.0 connectivity, the handlebar remote communicates wirelessly with the dropper post, allowing quick and effortless saddle height adjustment at the push of a button. With no cable routing required between the lever and the post, installation is simple and the bike maintains a clean cockpit while reducing ongoing maintenance.

The EDP01 features a sealed adjustable air cartridge for smooth operation and an automotive-grade IPX6 water resistance rating to help handle wet and demanding riding conditions. A rechargeable lithium-ion battery powers the system and provides thousands of activations on a single charge.

With a 0mm offset post head and a secure 2-bolt saddle clamp, the EDP01 provides stable saddle positioning and dependable performance for trail and enduro riding.

Key Features:

• Wireless electronic dropper post with Bluetooth 5.0 connectivity

• 200mm travel for maximum saddle height adjustment on descents

• Cable-free design for simple installation and clean cockpit

• Sealed adjustable air cartridge for smooth and consistent operation

• IPX6 water resistance for reliable performance in wet conditions

• Rechargeable lithium-ion battery system

• 0mm offset post head with secure 2-bolt saddle clamp

• Handlebar remote powered by CR2032 battery

Compatibility:

Designed for bikes using a 30.9mm seatpost diameter.

Specifications:

• Model: EDP01

• Type: Wireless Electronic Dropper Seatpost

• Travel: 200mm

• Diameter: 30.9mm

• Length: 545mm

• Offset: 0mm

• Connectivity: Bluetooth 5.0

• Water Resistance: IPX6

Battery:

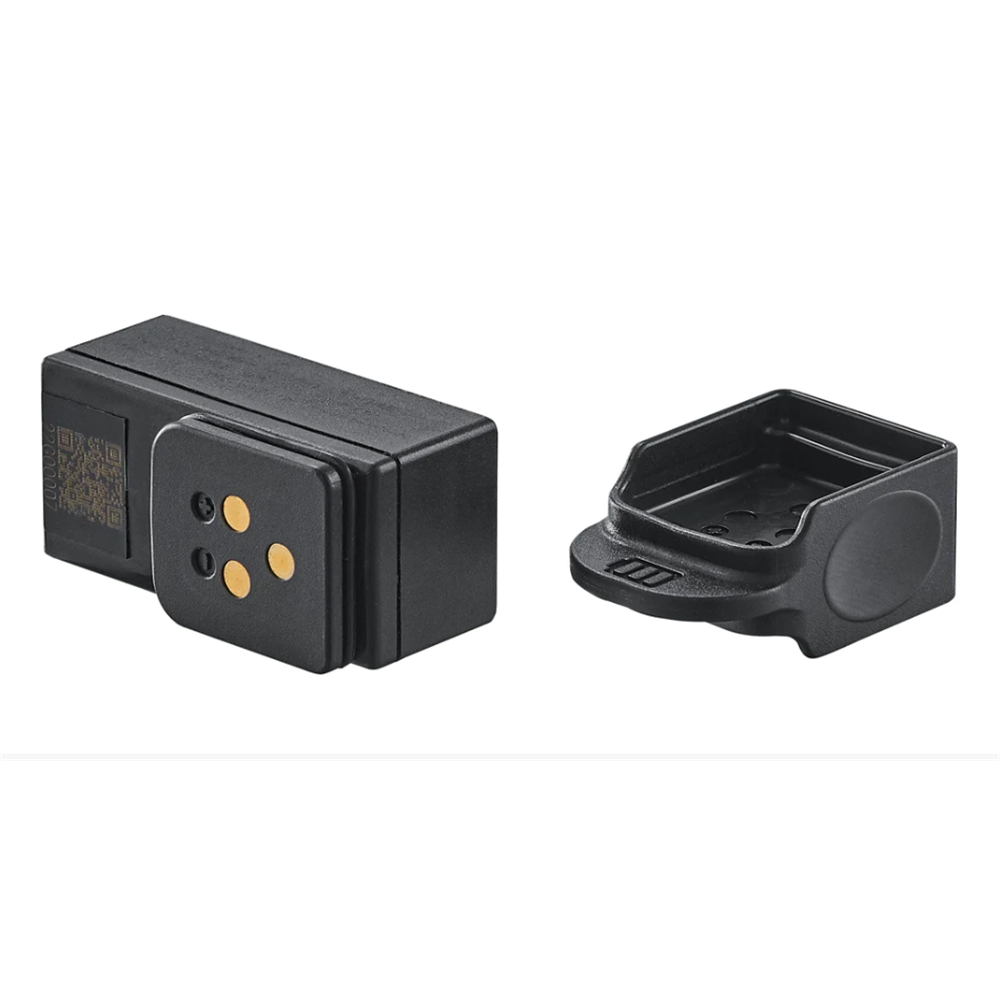

• Battery Type: Rechargeable Lithium-ion

• Battery Voltage: 7.4V (nominal)

• Battery Capacity: 240mAh

• Battery Size: 40.5 × 19.0 × 21.2mm

• Battery Weight: 20.5g

• Estimated Range: Over 6,000 activations per full charge

Charger:

• Charge Voltage: 8.4V

• Charge Current: 240mA

• Charge Time: Approx. 90 minutes

• Power Source: 5V DC USB

• Plug Type: USB Type-C

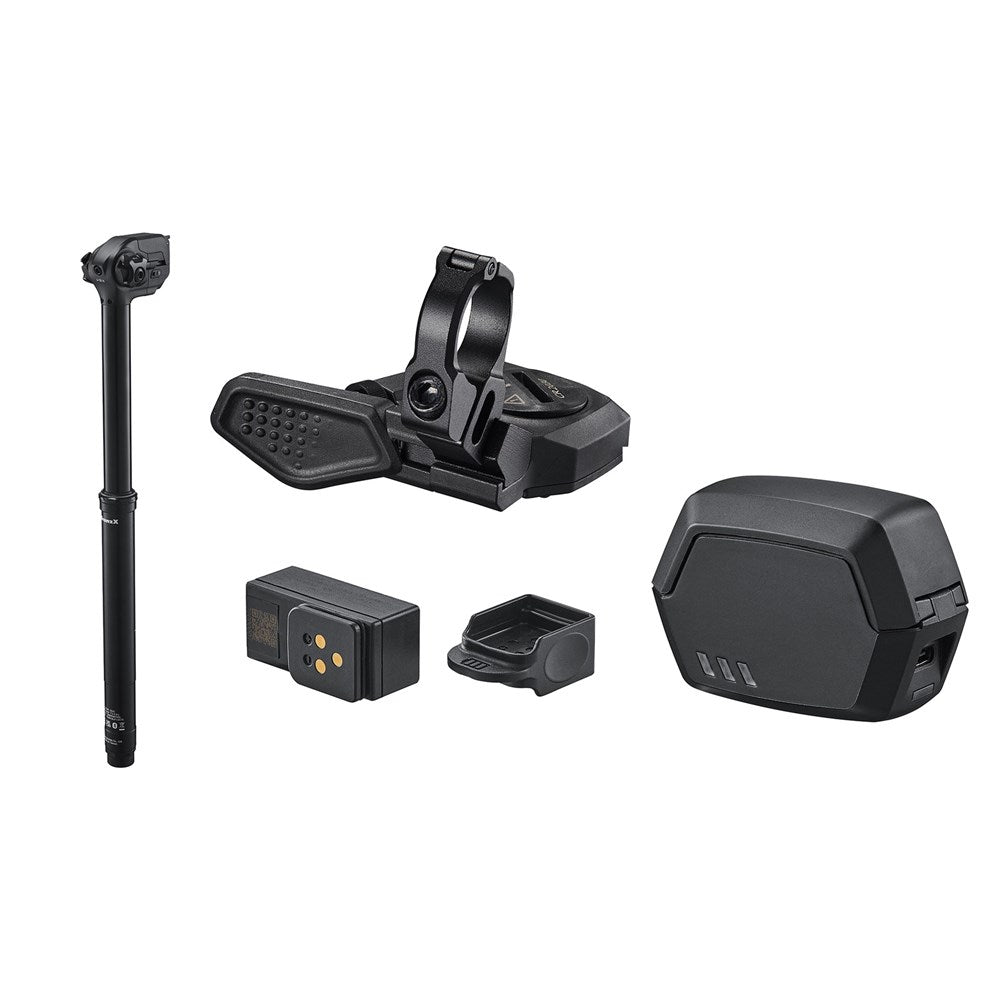

What’s in the Box:

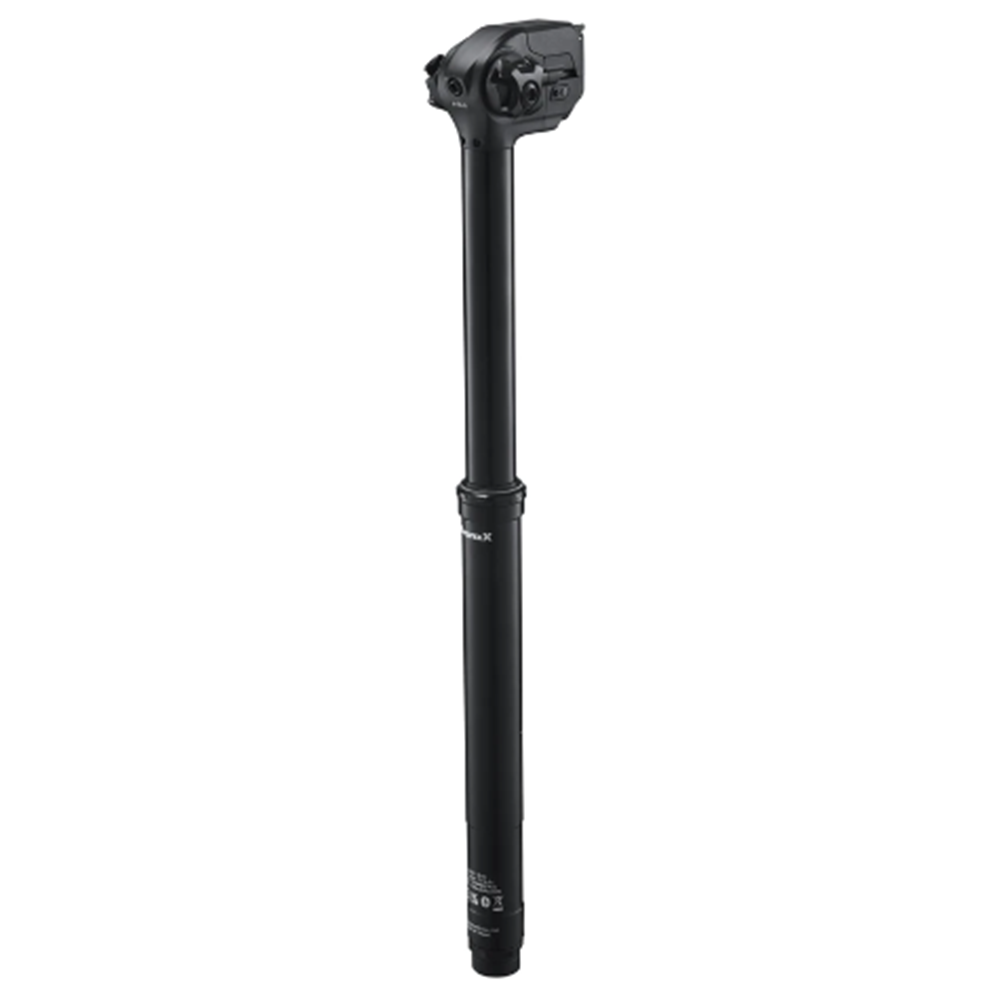

• TranzX EDP01 Wireless Dropper Post

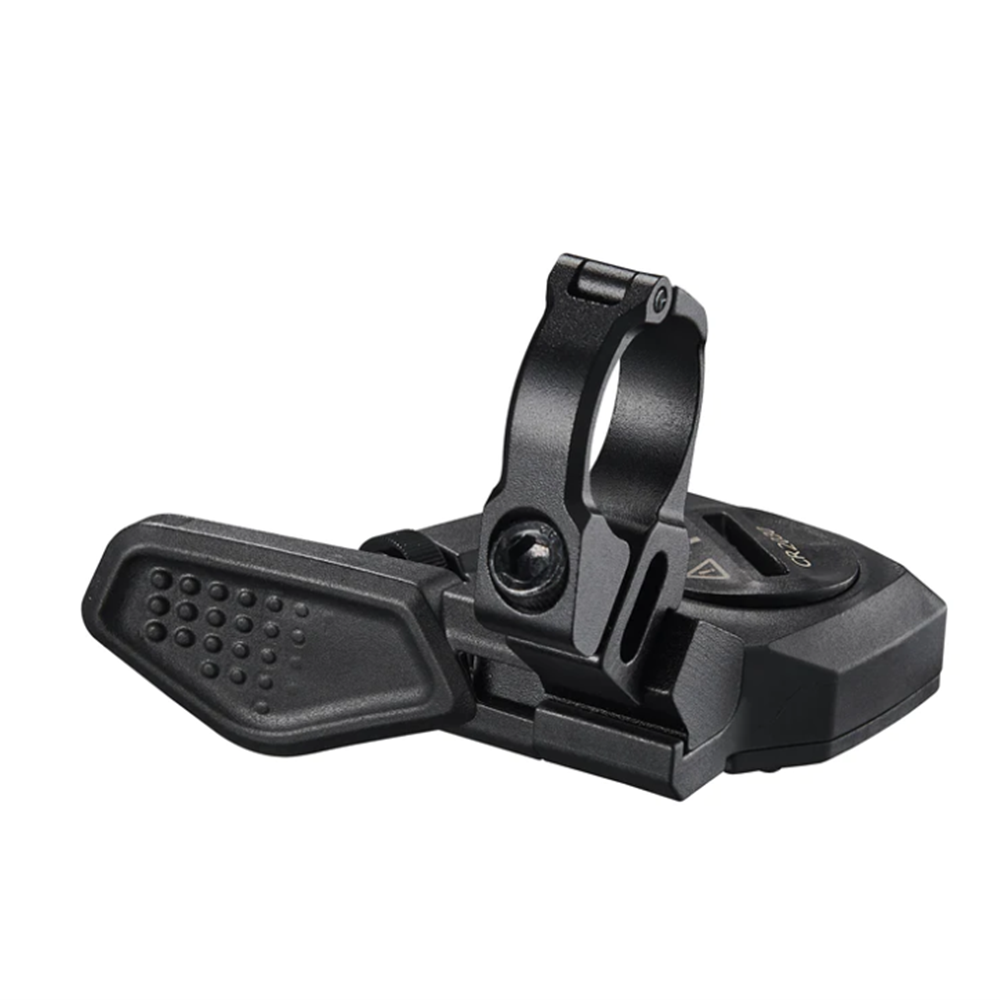

• EDP01 Remote Lever with 22mm Clamp

• Rechargeable Lithium-ion Battery

• Charging Case

• Required Charging Cables

• CR2032 Battery for Remote

WARNING — KEEP BATTERIES OUT OF REACH OF CHILDREN
