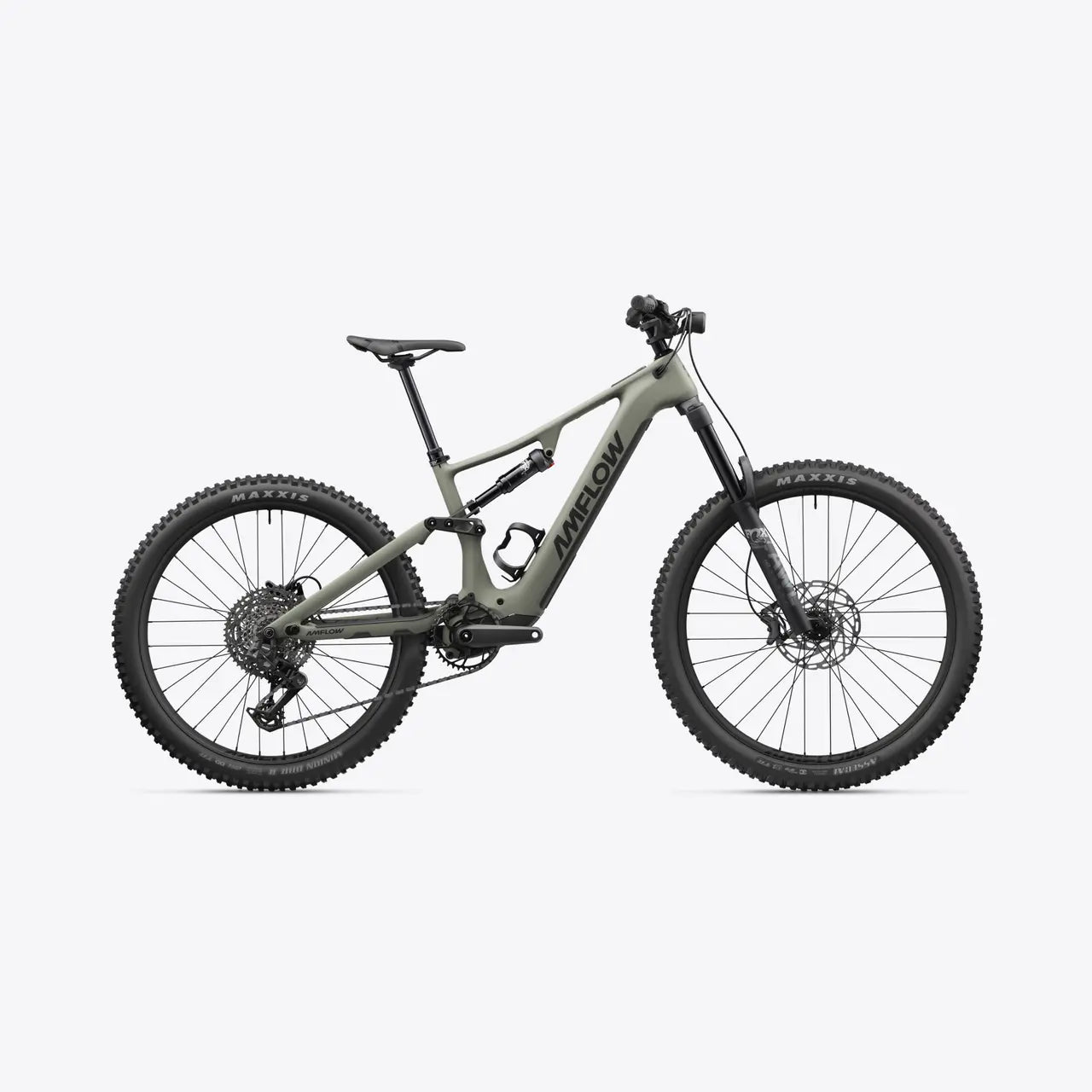

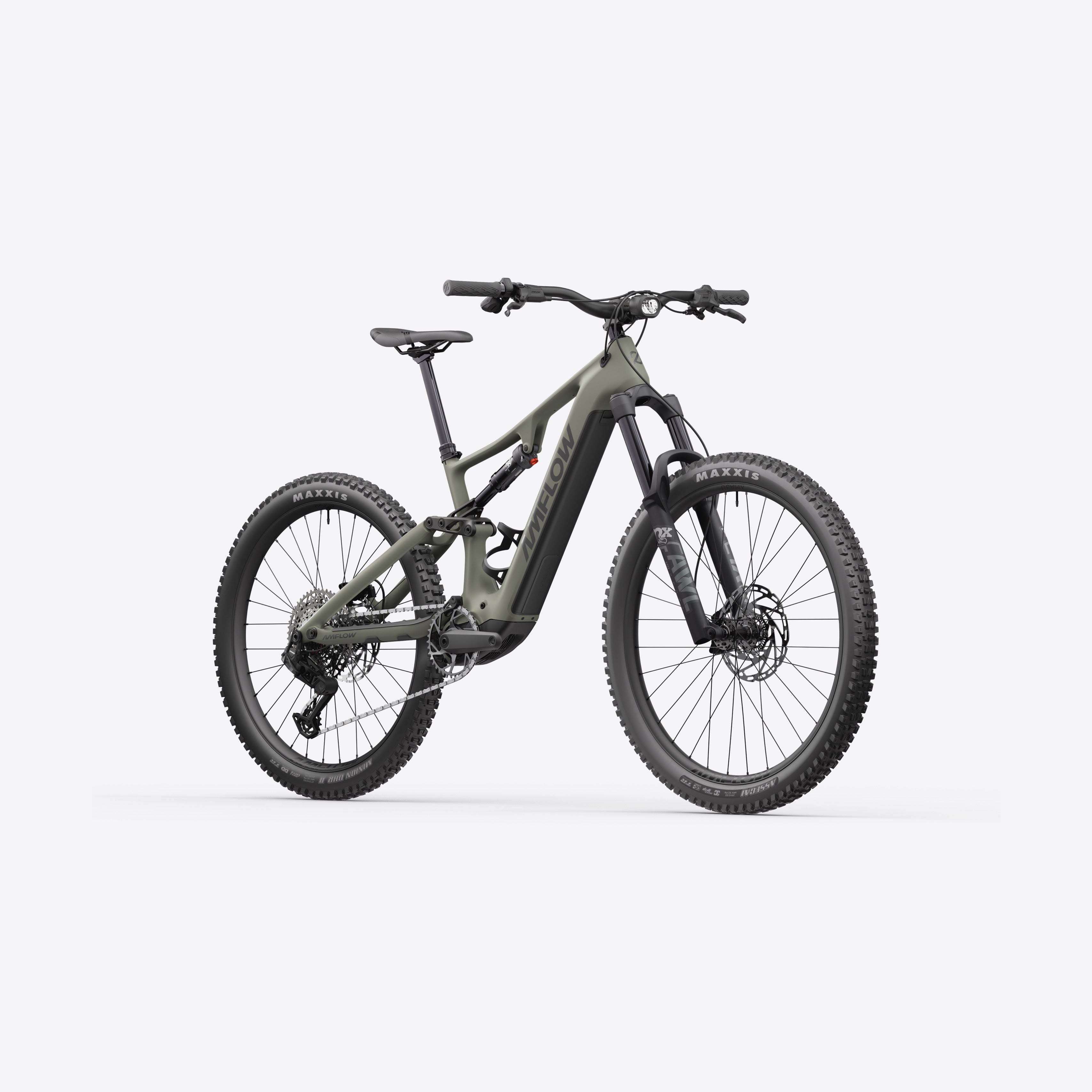

Amflow PR Carbon

Built for riders who demand power, precision and versatility, the Amflow PR Carbon combines a lightweight full-carbon frame with the advanced Avinox M2 drive system to deliver exceptional trail performance. Producing up to 125Nm of peak torque, with adjustable geometry and a removable battery, it's designed to tackle everything from technical climbs to fast-flowing descents with confidence.

Lightweight Carbon Frame

The full-carbon frame weighs approximately 2.9kg and is engineered for strength, stiffness and agile handling. Progressive geometry and up to 40 adjustment configurations allow you to fine-tune the bike to suit your riding style, terrain and preferred wheel setup.

Avinox M2 Drive System

Powered by the Avinox M2 drive unit, the PR Carbon delivers smooth, responsive assistance with 110Nm of continuous torque and 125Nm of peak torque. The integrated OLED display and wireless controls provide intuitive access to ride modes, battery information and system settings.

Removable 800Wh Battery

The high-capacity 800Wh removable battery offers impressive range and can be easily removed for convenient charging or battery swaps. The standard charger keeps you powered up and ready for your next ride.

Tuned for Every Trail

Adjustable head angle, bottom bracket height and chainstay length allow you to customise the bike's handling for everything from steep technical climbs to high-speed descents, giving you the flexibility to ride with confidence wherever the trail leads.

Ride Further. Ride Smarter.

Combining premium components, intelligent technology and an adaptable chassis, the Amflow PR Carbon is built for riders who want a lightweight, capable electric mountain bike that inspires confidence on every ride.

Frame

• Amflow PR Carbon Frame
• Colour: Basalt Grey
• Carbon fibre construction
• 40 adjustable geometry configurations
• Compatible with 27.5" and 29" rear wheels

E-Bike System

• Avinox M2 Drive Unit
• 110Nm nominal torque
• 125Nm peak torque
• Avinox 2" OLED Control Display
• Avinox removable 800Wh battery
• Dual wireless controllers
• 4A / 168W charger

Suspension

Fork

• FOX AWL HD Sport
• 160mm travel
• RAIL 2.0 damper
• Sweep & LSR adjustment
• 15×110mm axle
• 44mm offset

Rear Shock

• FOX Float Rhythm
• Custom tune
• LSR adjustment
• 210×55mm air shock

Brakes

• Tektro TKD173 brakes
• 203mm rotors

Wheels

• Amflow XMA-30 Alloy Mullet Wheelset
• Front: 29"
• Rear: 27.5"
• 30mm internal width
• Tubeless Ready
• SAPIM E-Light spokes
• Alloy hubs
• HG freehub

Tyres

Front:

• Maxxis Assegai
• 29 × 2.5"
• 3C MaxxGrip
• EXO+
• Tubeless Ready

Rear:

• Maxxis DHR II
• 27.5 × 2.5"
• MaxxTerra
• DoubleDown
• Tubeless Ready

Cockpit

• Amflow Enduro Alloy Handlebar
• 800mm width
• 40mm rise
• 35mm clamp
• 5° upsweep
• 9° backsweep
• Amflow Lock-on Grips
• Amflow 35mm Stem

Saddle & Dropper

• Amflow Mountain Saddle
• Amflow Dropper Post
• Adjustable travel spacer
• M: 190mm
• L / XL: 210mm
• XXL: 230mm

Included Accessories

• Avinox Front Light
• Rear Light
• Bottle Cage
• Geometry Adjustment Kit
• Two Battery Keys
• Torque Wrench
• Shock Pump
• Dropper Travel Spacers
• Clear Frame Protection Film
• Quick Start Guide
