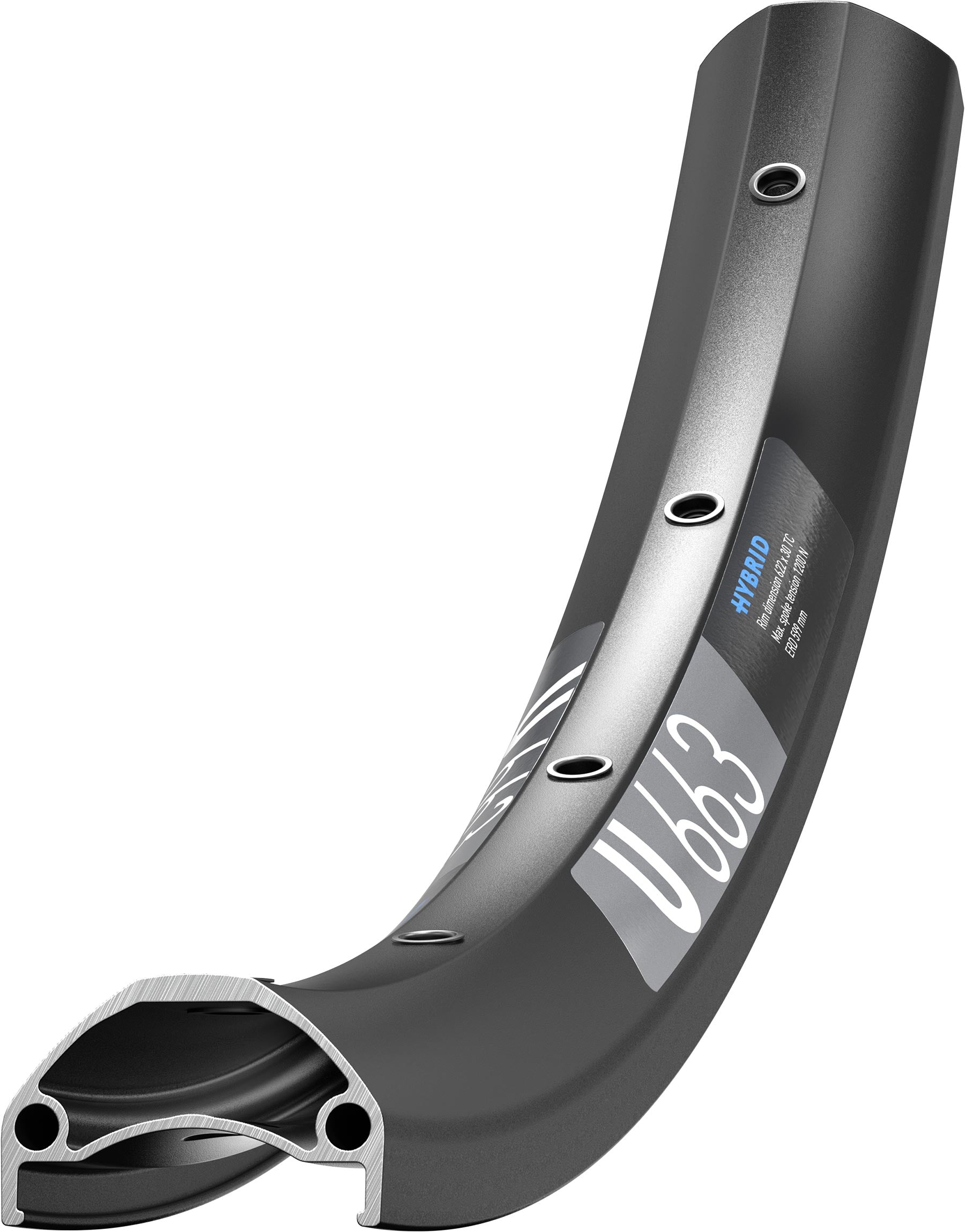

DT Swiss Rim U663 20 Inch X30mm DB 36h

DT Swiss Rim U663 20 Inch X30mm DB 36h

GENERAL

Field of application : U
Product type : 663
Rim joint : Pin joint
Color : Black
Net weight [g] : 500.000
Recommended system weight max. : 180 kg,180 kg
ASTM classification : 2.2
Aproved for e-bikes : Yes (max. 32Km/h or max. 250W)
Material : ALUMINIUM
Tire interface : Hooked / Crotchet tubeless TC
Brake interface : Disc

DIMENSIONS

Rim diameter : 406 mm (20")
Reference diameter ERD : 383 mm
Inner width : 30 mm
Outer width : 35 mm
Rim height : 22 mm

HOLES

Number of holes : 36
Spoke bore rim : Black eyelet
Valve hole : Schrader (plus Presta-adapter)

ACCESSORIES

Inclusive valve adapter AV to : Valve adapter AV to SV
