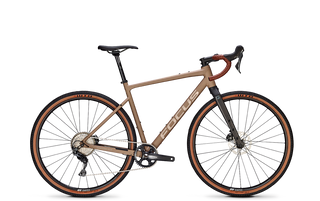

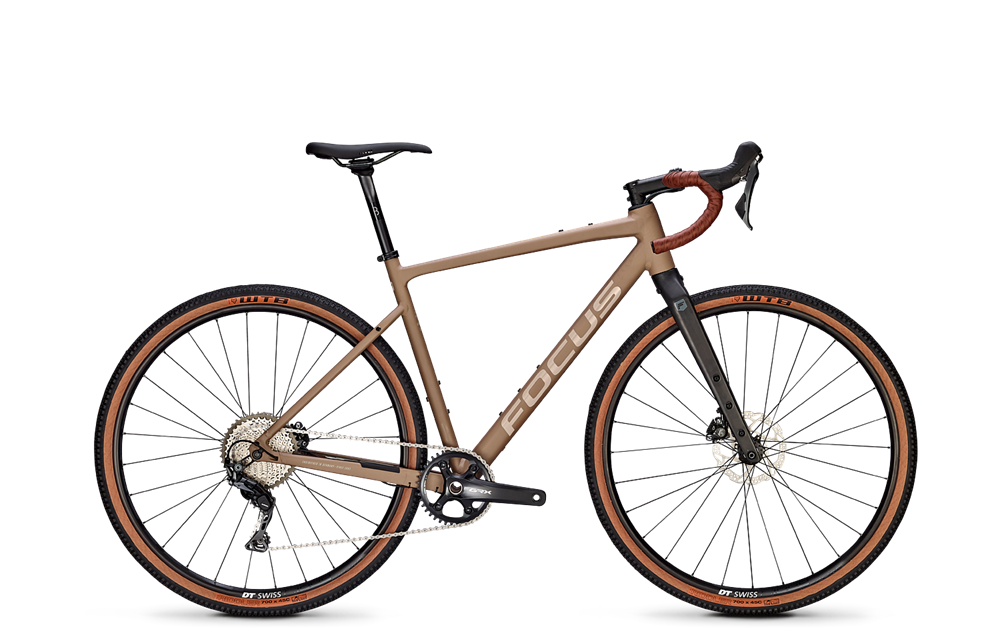

Focus Atlas 6.9 2023

Lightweight and robust aluminium frame & carbon fork with integrated C.I.S. cable routing and top tube bag, plus mounting points for everything you need

Shimano GRX810 1x11 groupset with special gravel ergonomics for precise braking and shifting with optimised gear ratio

Maximum stability and high quality: DT Swiss Gravel LN Road Boost wheels with double-sealed hubs

Aluminium frame with top tube bag

Shimano GRX810 1x11

DT Swiss Gravel wheels

• Brake
  • 160
• Frame size
  • XS,S,M,L,XL
  • 48,51,54,57,60
• Groupset
  • Shimano GRX800
• Wheelset
  • DT Swiss LN Gravel, 622/24, disc, center lock, front: 110x12 mm, rear: 148x12 mm
• Max total weight
  • 110 kg
• Frame
  • Aluminium, disc, BSA, 148x12 mm thru axle, flat mount 160/160 mm, internal cable routing
• Fork
  • Carbon, disc, 110x12 mm thru axle, flat mount 160/160 mm, internal brake cable routing, multiple mounting points
• Handlebar
  • Aluminium, 31,8 mm, drop: 116 mm, reach: 74 mm, flare: 10 degree
• Saddle
  • WTB SL8
• Seat post
  • BBB FlyPost SP-131, 27,2mm, set-back: 0mm, carbon
• Stem
  • Aluminium, 31,8 mm, 6 degree
• Brakes
  • Shimano GRX 810
• Crank set
  • Shimano GRX 810
• Sprocket
  • Shimano SLX
• Transmission
  • front: 40, rear: 11-42
• Brake lever
  • Shimano GRX BR-RX810
• Color
  • FlatBrown
  • MilkBrown
• Grip
  • Focus Bartape SL
• Rear derailleur
  • Shimano GRX 812
• Tire
  • WTB Riddler, 700 x 45C, folding
• Bottom bracket
  • BSA
• Shift/brake lever
  • Shimano GRX BR-RX810
  • Shimano GRX 800
• Chain
  • Shimano CN-HG601
