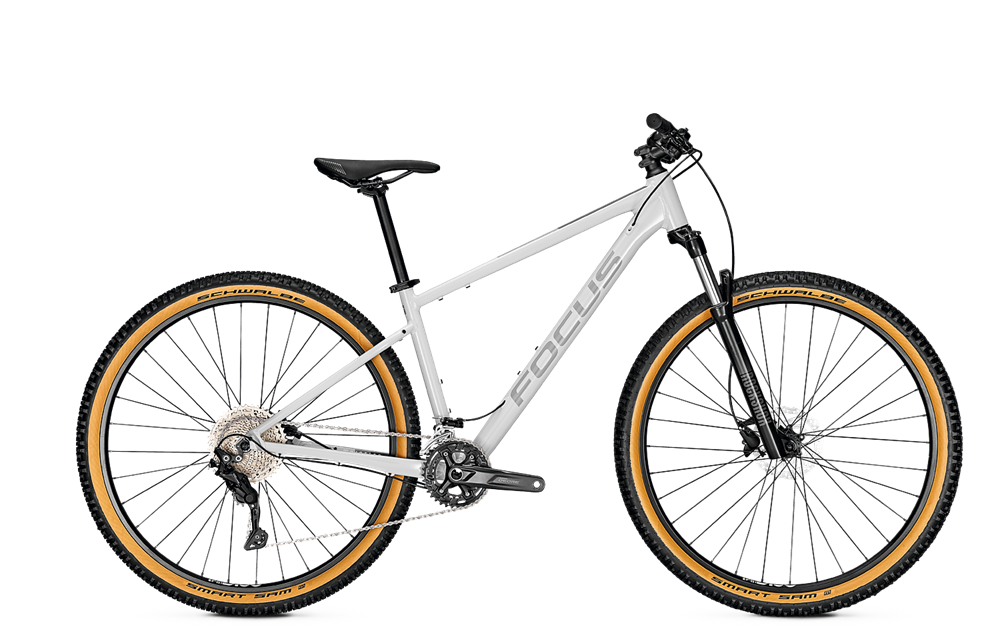

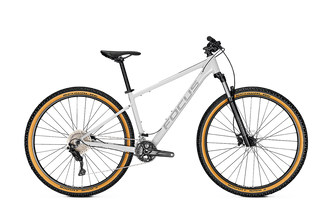

Focus Whistler 3.8 2023

Reliable Shimano Deore 2x10 shifting and SR Suntour XCT-ATB suspension fork with mounting points for mudguards

Visual highlight and better protection: All cables are integrated into the frame

Option to mount pannier rack and mudguard as well as further mounting points below the top tube to attach e.g. a folding lock

Shimano Deore 2x10 & SR Suntour XCT-ATB fork

All cables integrated into the frame

Option to mount pannier rack & mudguard

• Brake
  • 160
• Frame size
  • XS,S,M,L,XL
  • 34,38,42,46,50
• Drive train
  • Chain
• Max total weight
  • 110 kg
• Frame
  • 6061 aluminium, 3D forging, disc, internal cable routing, post mount 160 mm
• Fork
  • SR Suntour XCR 32 Air LOR, 100 mm travel, 9 mm QR
• Handlebar
  • Riser, Aluminium, 720mm
• Saddle
  • Selle Italia X3
• Seat post
  • Alloy, 27,2 mm
• Stem
  • Aluminium, 31,8 mm, 6°
• Brakes
  • Shimano MT200, 2-piston, hydraulic disc brake
• Crank set
  • PROWHEELMPP561TT3626T170mm
• Sprocket
  • Shimano Deore M6100, 12-speed
  • Shimano Deore CS-M5100, 11-speed
• Transmission
  • front: 36/26, rear: 11-42
• Wheel rims
  • Rim VIPER21, 622-21, 32H
• Brake lever
  • Shimano MT200
• Color
  • Lightgrey
• Travel
  • 100 mm
• Hub
  • Shimano HB-TX505, QR, 5x100 mm
  • Shimano TX500, QR, 5x135 mm
• Grip
  • Velo VLG108
• Rear derailleur
  • Shimano Deore M4120, 11-speed
• Tire
  • Schwalbe Smart Sam 2.25, 57-622
• Bottom bracket
  • BSA
• Shift/brake lever
  • Shimano MT200
  • Shimano Deore M5100, 11-speed
• Spoke
  • Zink, black
• Chain
  • Chain, KMC CNX 9 Grey 116 L
