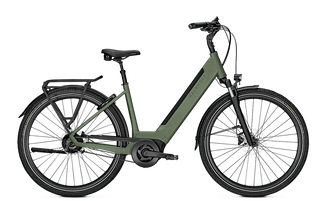

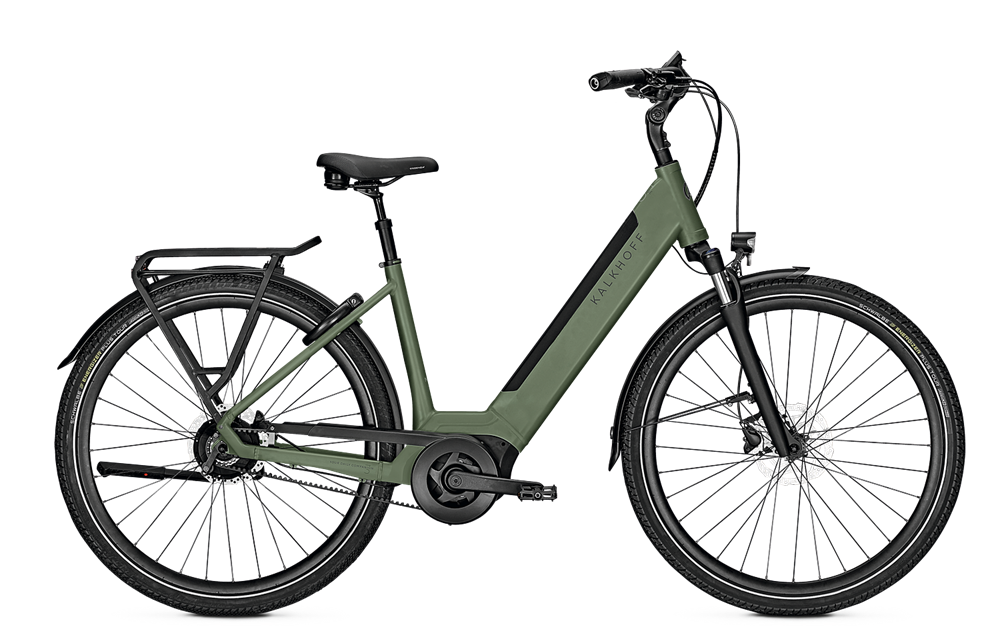

Kalkhoff Image 3.B Excite 625wH Belt Performance Smart

Bosch Performance Line smart system drive with 75 Nm

Integrated Bosch PowerTube battery with 625 Watt hour capacity

Range up to 120 km*

Shimano MT200 hydraulic disk brakes

• Range
  • 115 km
• Charger
  • Bosch, 4A
• Brake
  • 180
• Pedal
  • Comfort, aluminium
• Frame size
  • M,L,XL,S
  • 48,53,58,43
• Drive train
  • Belt
• Groupset
  • Shimano Nexus, 5-speed
• Bike stand
  • rear stand, adjustable
• Lock
  • Trelock RS 453, removeable key
• Max total weight
  • 130 kg
• Frame
  • Integrale 3|23
• Fork
  • SR Suntour NEX E25 HLO, lockout
• Handlebar
  • Tour, Aluminium
• Saddle
  • Selle Royal Essenza Plus
• Seat post
  • Patent, suspension
• Stem
  • Aluminium, adjustable
• Brakes
  • Shimano MT200, hydraulic disc brake
• Crank set
  • aluminium
• Sprocket
  • Gates Carbondrive CDX
• Transmission
  • vorne: 42, hinten: 28
• Wheel rims
  • Aluminium, hollow section, eyelets
• Brake lever
  • Shimano MT200
• Item carrier
  • MIK Rear Carrier
• Headlights
  • Herrmans H-Black MR4, LED
• Battery
  • 625 Wh
• Color
  • mineralgreen matt
  • diamondblack glossy
• Travel
  • 63 mm
• Hub
  • Shimano TX505, QR
  • Shimano Nexus, 5 speed,Shimano Nexus, 5-Gang
• Protective guard
  • plastic, with edge protector
• Grip
  • Ergon GC10
• Tire
  • Schwalbe Energizer Plus Performance, 50-622
• Bottom bracket
  • Integrated in Drive Unit
• Shift/brake lever
  • Shimano MT200
  • Shimano Nexus
• Spoke
  • Niro
• Chain
  • Gates Carbondrive CDX
