MagCAD Exposure Lights Specialized SWAT Saddle Mount - Trace

Mount your Exposure Trace rear light to a compatible Specialized SWAT saddle with this MagCAD mount.

What's Included

• 1x 3D printed mount.
• 2x M5x14mm button head screws.
• 1x rubber band.

The Exposure Trace light is pictured for reference only and not included.

Overview

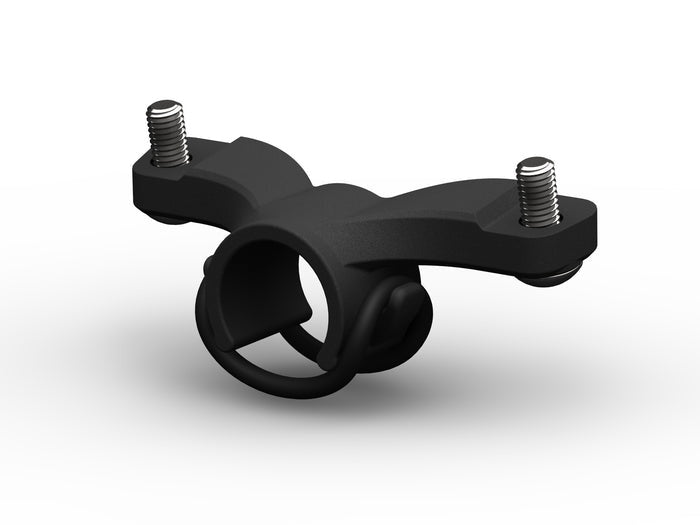

This mount allows you to attach an Exposure Trace rear light underneath a compatible Specialized SWAT saddle, making for a very clean and compact installation. It holds your device close to the underside rear of your saddle with minimal protrusion.

The additional hooks allow you to further secure your Exposure light with a rubber band (supplied).

The Specialized SWAT saddle system introduces 2x M5 threaded inserts to the underside of the saddle at 60mm hole centre distance, allowing various items to be attached. Some other brands including Selle Italia have also adopted the same system on certain models of saddle.

This mount has a 10 degree twist to hold your Trace horizontally with your saddle level. There is a 2-3 degree tolerance depending on the exact model of saddle and setup.

Application

To attach the mount simply bolt to the underside of your saddle with 2x M5x16mm button head screws, supplied. Push the Exposure light into the mount to secure the device. Attach the rubber band to one of the hooks, pull around the light, then attach to the second hook.

We recommend using thread lock on all fasteners to keep the mount secure and parts should be inspected periodically.

Compatible With:

• Exposure Trace rear light.
• Specialized SWAT saddles including Mirror saddles.
• Not compatible with the S-Works Phenom Mirror saddle.

Specifications

• Weight: 7 grams (without hardware), 13 grams (with hardware).
