Product Details

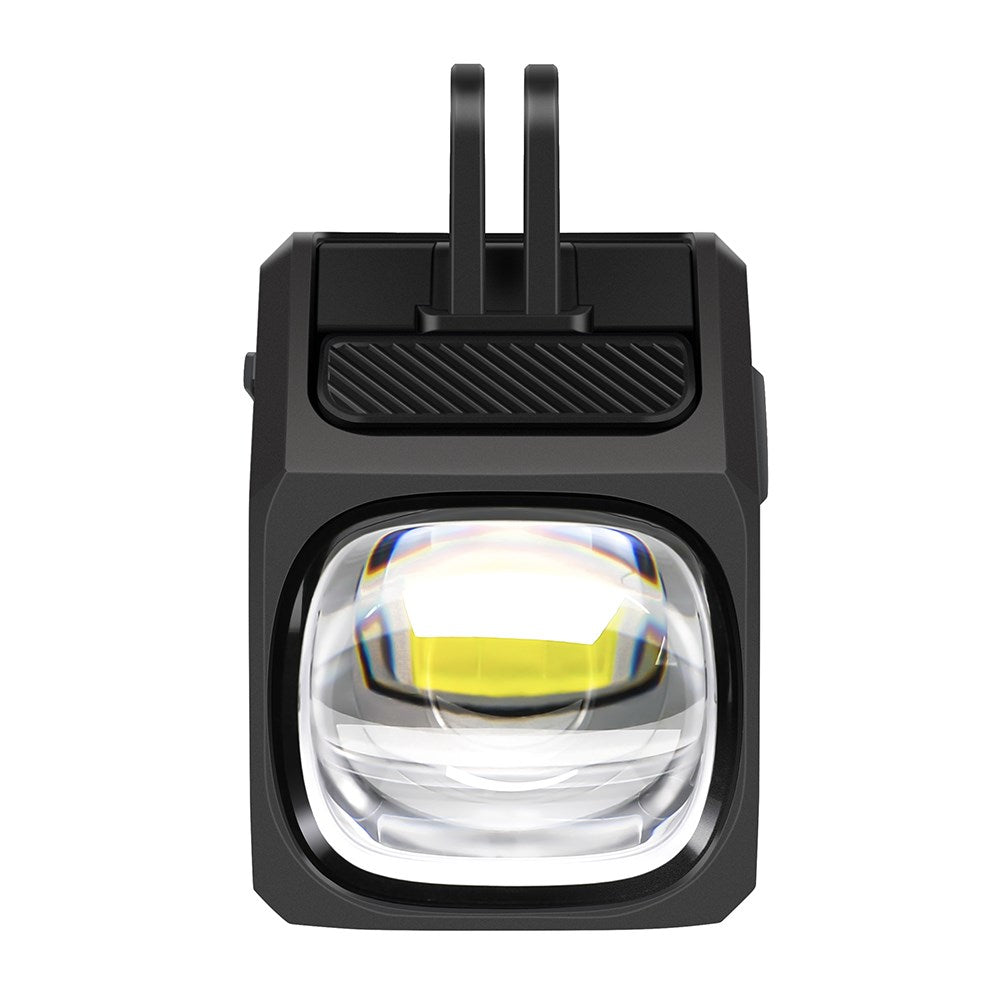

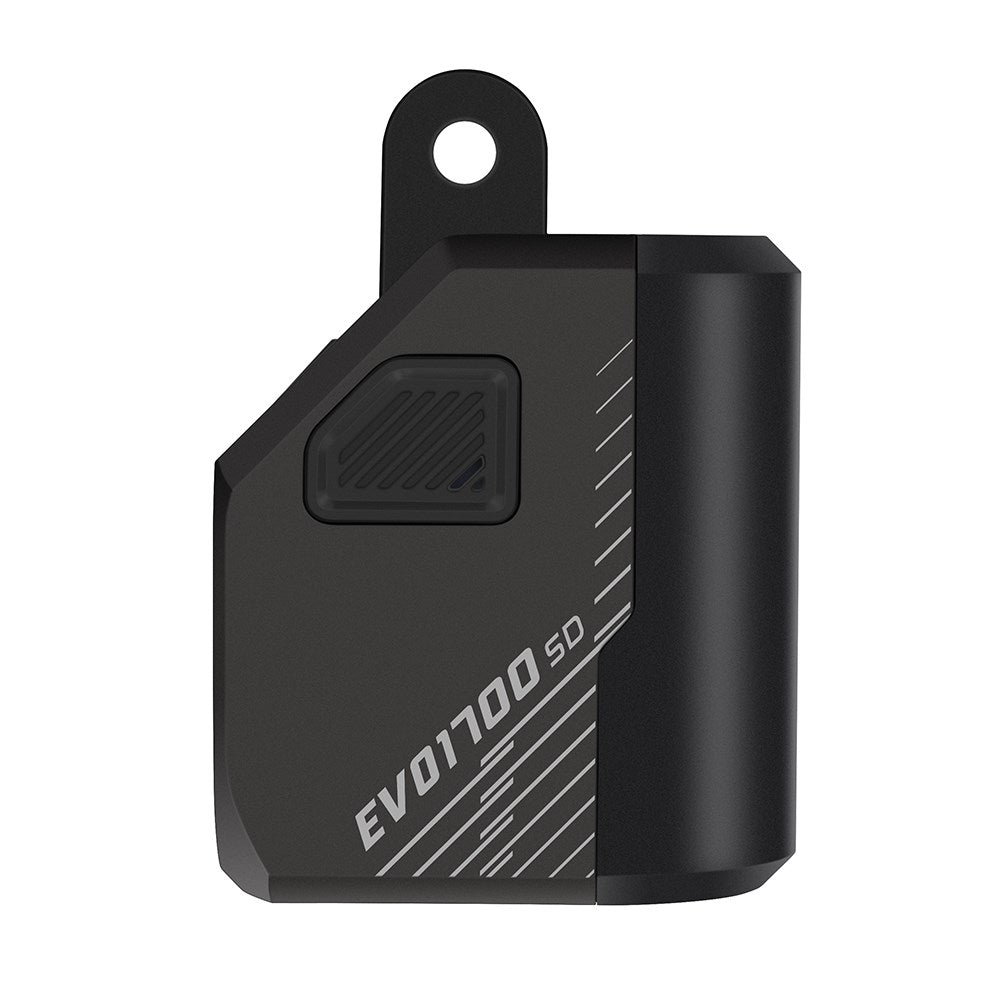

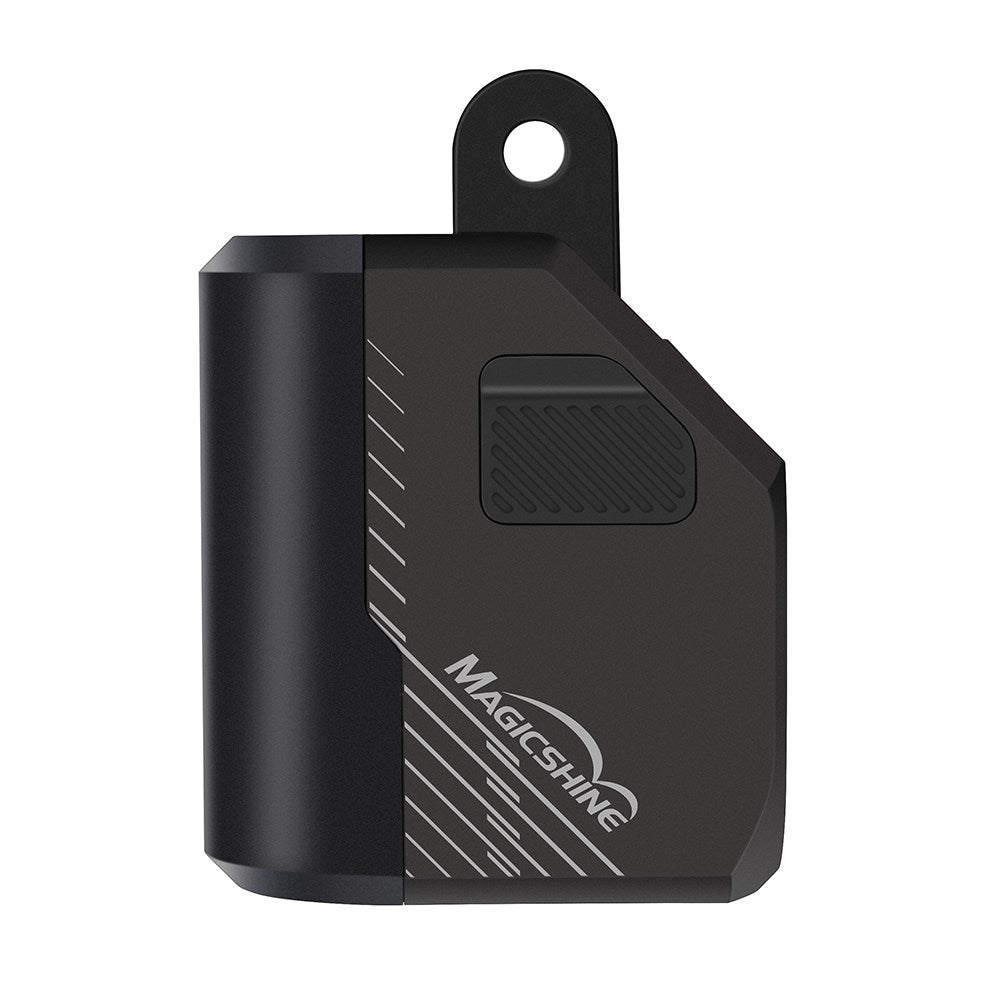

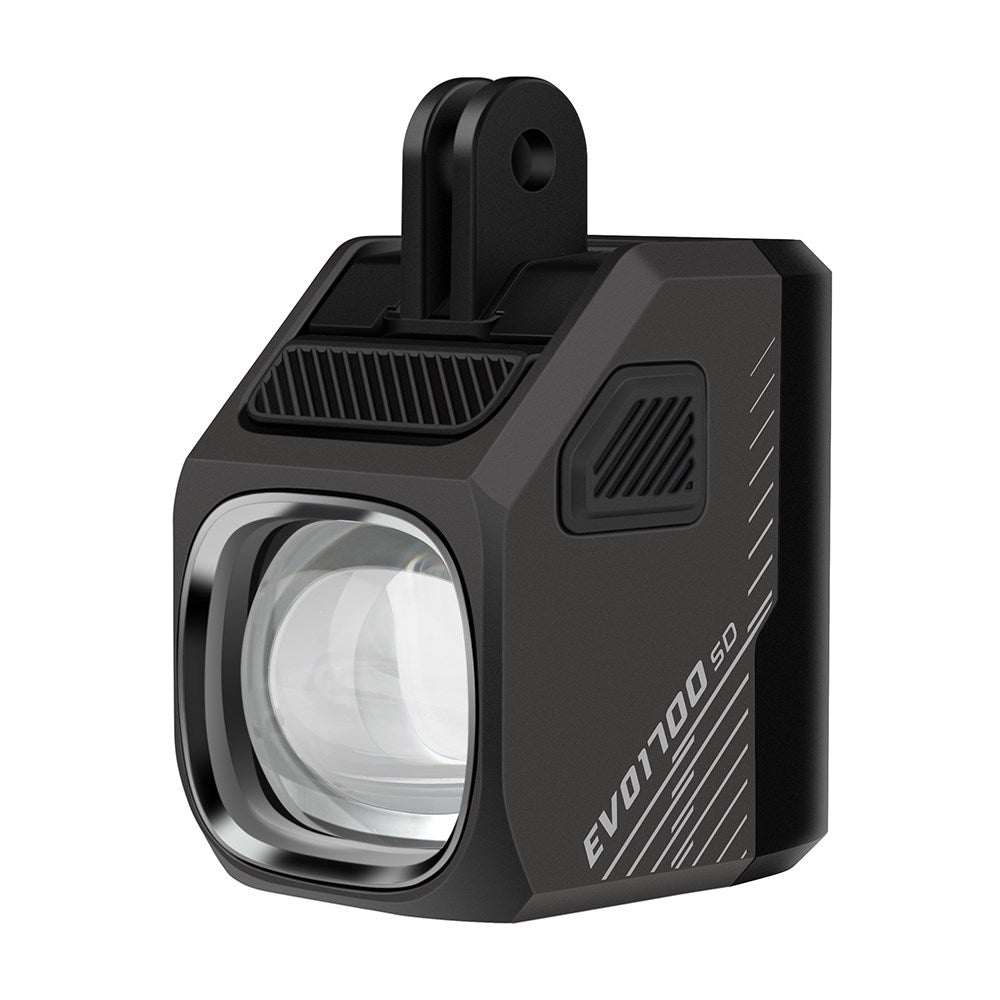

Magicshine EVO 1700SD Under-Bar Mounted Front Light Shimano Di2 Compatible
The Magicshine EVO 1700SD Front Light is a powerful and intelligent bike light designed specifically for modern road bikes equipped with Shimano Di2 electronic shifting systems. Delivering up to 1700 lumens, it provides strong and reliable illumination for commuting, road riding, and fast night rides.
What makes the EVO 1700SD unique is its Shimano Di2 integration, allowing riders to control light modes directly from compatible Di2 shifter buttons. Adjust brightness or switch between beam modes as easily as shifting gears, keeping your hands safely on the handlebars.
The light features a dual-beam system with a cut-off low beam that focuses light onto the road without dazzling oncoming riders or drivers. When extra visibility is needed, the high beam mode expands the beam distance to illuminate dark paths, corners, and obstacles further ahead.
Powered by a 4000mAh rechargeable battery, the EVO 1700SD provides up to 11 hours of runtime and charges via USB-C. The under-handlebar mounting design keeps your cockpit tidy while allowing space for bike computers. Its durable aluminium and plastic housing helps manage heat while maintaining a compact, lightweight design.
Key Features:
- Maximum 1700 lumens output for powerful road illumination
- Shimano Di2 integration allows control through Di2 shifter buttons
- Low beam with cut-off line prevents glare for oncoming traffic
- High beam mode for extended visibility on dark roads or trails
- Under-handlebar mounting design keeps cockpit clean and organised
- USB-C rechargeable battery with up to 11 hours runtime
- Battery indicator shows remaining power level
- Durable aluminium and plastic housing for efficient heat dissipation
- GoPro-style quick release for fast installation and removal
- IPX6 waterproof rating for reliable performance in wet weather
Specifications:
- Max Output: 1700 Lumens
- Max Runtime: up to 11 hours
- Max Beam Distance: 205 m
- Beam Intensity: 10520 CD
- Light Source: High-efficiency LED
- Lens Type: TIR optical lens
- Battery Capacity: 3.6V 4000mAh
- Charging Time: approx. 5 hours (5V / 1A)
- Material: Aluminium + Plastic
- Waterproof Rating: IPX6
- Weight: 151 g
- Dimensions: 42 × 46 × 53 mm
- Warranty: 2 Years
Shimano Di2 Compatibility:
Compatible wireless rear derailleurs:
- RD-R9250
- RD-R8150
- RD-R7150
- RD-RX825
Note: Not compatible with Shimano STEPS e-bike systems.
What’s in the Box:
- Magicshine EVO 1700SD Front Light
- USB-C charging cable
- Safety tether
- User manual
- Magicshine App user manual
