Orbea Gain Carbon OMR monocoque structure, Integrated Seat clamp with STVZO light, ICR cable routing, Thru Axle 12x142mm rear, thread M12x2 P1, Flat Mount disc, 700x35 max tyre, BB386 EVO, Mahle X20 AMC plug.

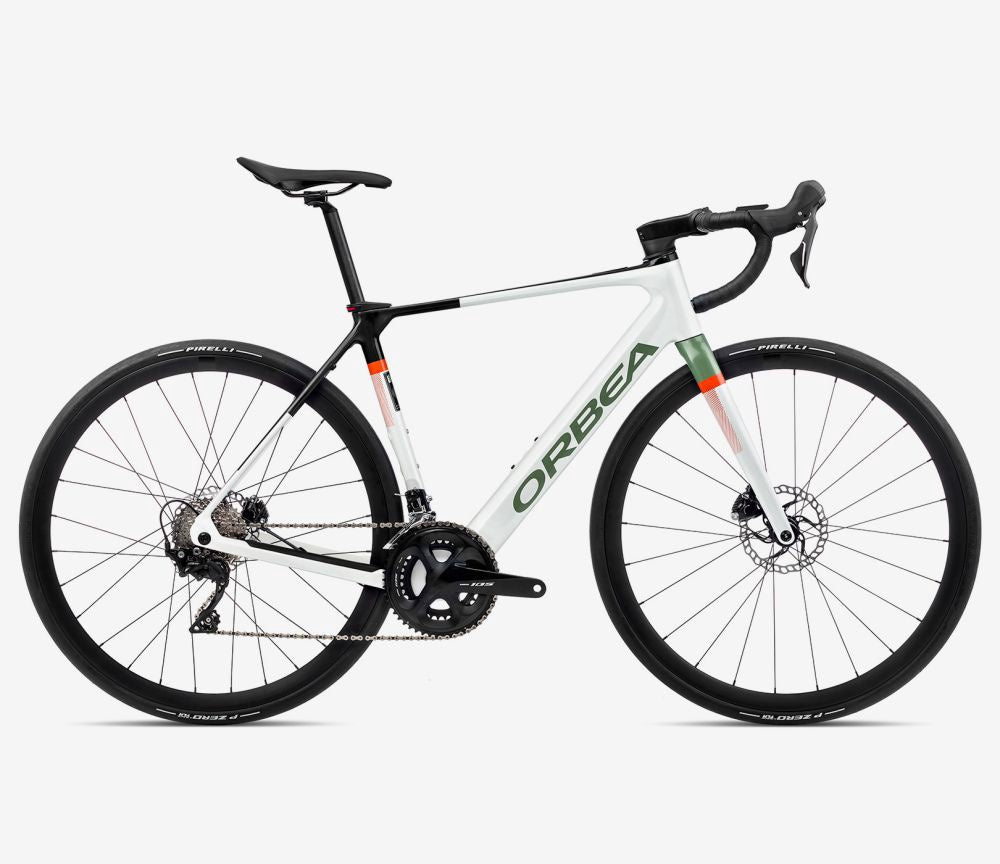

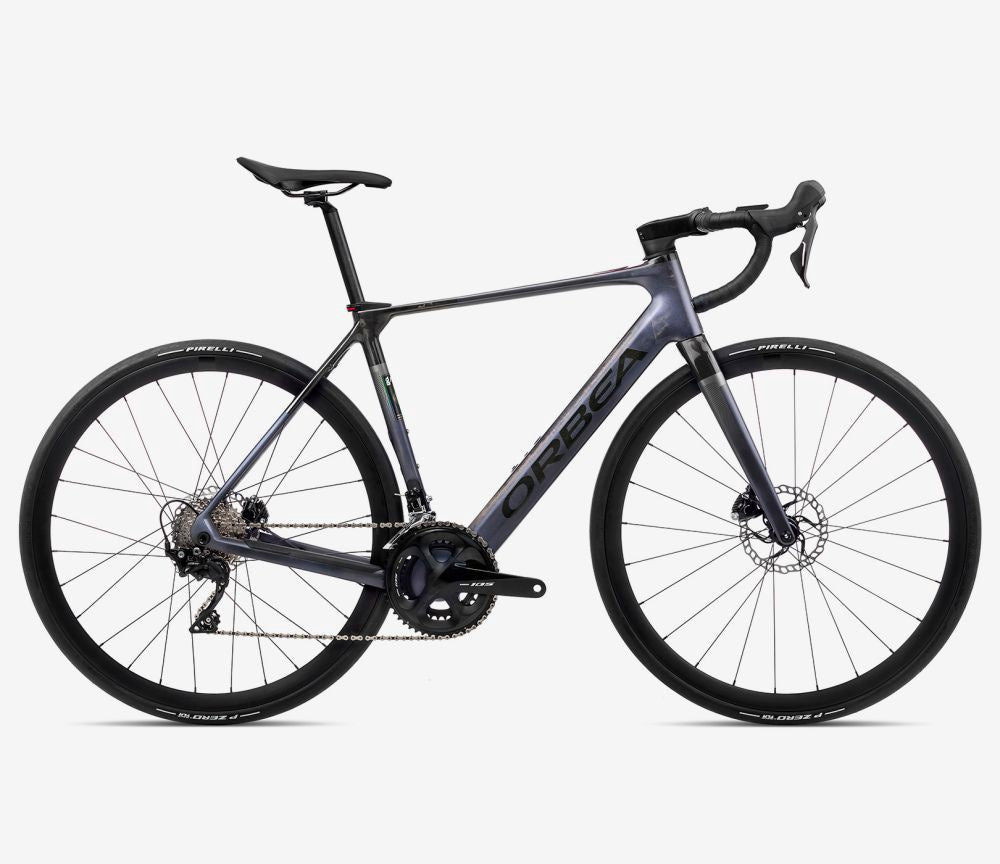

Orbea Gain M30 2023
$11,999.00
ENQUIRE NOW!
FRAMES
FRAME
FORK
Gain OMR carbon fork, 700x35 maximun tyre, flat mount disc mount, 12x100mm Thru Axle
HEADSET
FSA 1-1/2" Integrated Aluminium Cup
DRIVETRAIN
CRANKSET
Shimano 105 R7000 34x50t
SHIFTERS
Shimano ST-7020
CASSETTE
Shimano 105 R7000 11-32t 11-Speed
REAR DERAILLEUR
Shimano 105 R7000 GS
FRONT DERAILLEUR
Shimano 105 R7000
CHAIN
KMC X11
COCKPIT
HANDLEBAR
OC Road Performance RP20 Alu SL, Reach 80, Drop 125
STEM
OC Road Performance RP10, -8º
BRAKES
BRAKES
Shimano R7070 Hydraulic Disc
BRAKES CONFIGURATION
WHEELS
WHEELS
Alloy, Tubeless, 700c, 21c
TYRES
Pirelli P ZERO™ Race TLR 700x30c
FRONT WHEEL AXLE
Orbea Thru Axle 12x100mm M12x2 P1 Lite
REAR WHEEL AXLE
Orbea Thru Axle 12x142mm M12x2 P1 Lite
COMPONENTS
SEATPOST
Carbon, 27.2mm, Setback 20
SADDLE
Fizik Aliante R5
ACCESSORIES
FRONT LIGHT
Rear position light, on saddle clamp, COB Led, On/Off, 12 Lumen. STVZO
HANDLEBAR PLUGS
Orbea Anti-Slippery/Shock Proof
EBIKE
MOTOR
Mahle motor hub X20, ALC
BATTERY
Mahle iX350 36V 353Wh
RANGE EXTENDER
N/A
DISPLAY
Mahle Pulsar One monochrome ANT+ LEV
CHARGER
Mahle Active Charger up to 4A
REMOTE
Mahle ONE Head Unit (BT/ANT+)
