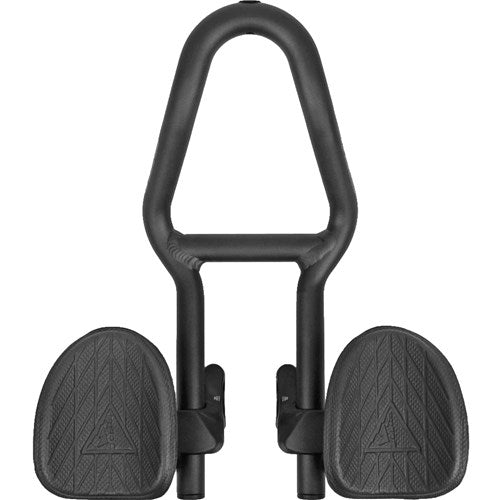

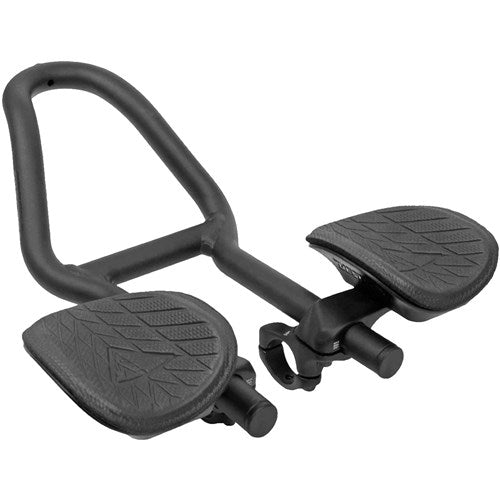

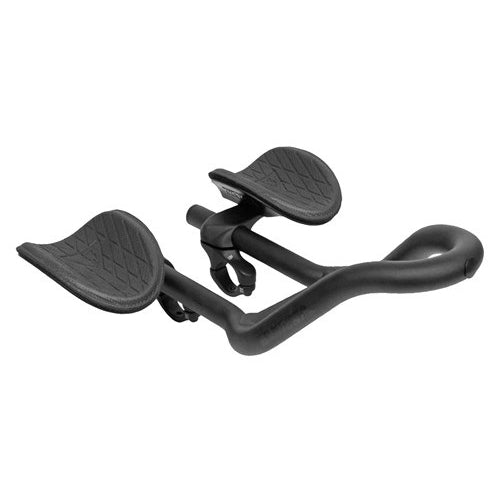

Profile Design Neosonic/Ergo+/52 GMR Aerobar 340mm

Profile Design Neosonic/Ergo+/52 GMR Aerobar 340mm

The Neosonic/Ergo+/52A GMR aerobar offers comprehensive yet simple adjustments, ideally suited to riders wishing to add aerobars to their road, gravel or packing bike.

The 52 GMR extension features above-the-bar brackets with a versatile bridge for easy accessory mounting, perfect for enhancing bike performance for backpacking enthusiasts and beyond.

Bracket
The Neosonic bracket offers our new generation fit range with a large offset to suit a range of applications. Pairing this bracket with the ergo armrest offers industry leading fit options and greater comfort.

Fit Data

• Armrest Offset: -95mm to -42.5mm in 7.5mm steps
• Armrest Width: 124mm to 290mm in 18.5mm steps (With Extensions at 100mm)
• Armrest Stack: The minimum is 42.5mm and the bracket is compatible with our existing risers kits which add up to 130mm stack with (70mm of spacers added)
• Extension Width: 100mm

The extension length can be easily adjusted using the top bolt.

There are 80 distinct position options achievable just by moving the armrests. Combine that with risers and this bar offers 1440 possible configurations. As a clip on bar it is also possible to adjust the extension width and tilt easily - this gives an unprecedented level of adjustment for a shorty aerobar.

Tech Specs

• Bracket: Neosonic

• Handlebar Clamp Diameter: 31.8mm (26.0 w/Shims)

• Extension Clamp Diameter: 22.2mm

• Armrest: Ergo+ / 10mm Pads

• Armrest Width Adjustment: 37mm

• Armrest Offset: 25mm

• Armrest Stack: The minimum is 42.5mm and the bracket is compatible with our existing risers kits which add up to 130mm stack with (70mm of spacers added)

• Extension Length: 340mm

• Grip Angle: 52 Degrees

• Rise: 137mm (bottom to top)

• Extension Width: 100mm

• Colour: Matte Black

• Weight: 448g

Tech Guide

• Torque settings (all bolts are M6)

• Bar Clamp: 6Nm

• Extension Clamp: 5Nm

• Armrest Bolts: 4.7Nm

Specifications

• Weight: 162g (100mm)

• Length: 70, 80, 90, 100, 110, 120, 130mm (±17°)

• Material: 3-D Forged 6061-T6 Aluminum

• Clamp Diameter: 31.8mm

• Angle: 73° (±17°)

• Steerer Tube Diameter: 11/8in

• Stack Height: 40mm

• Clamp Width: 40mm

• Clamp Tourque: 5Nm
