Product Details
Shimano Deore XT wheels bring robust performance to any trail
The aluminum tubeless rims are offset for balanced spoke tension. Double butted, straight-pull spokes are laced to Center Lock hubs with reliable, smooth-rolling labyrinth seal hubs.
Technologies
Center Lock -The Center Lock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.
Micro Spline - delivers lightweight aluminum Freehub body to reduce weight and 10 teeth top gear.
Use combination with Micro Splinecassette sprocket and Freehub.
* Micro Spline patents are pending
Features

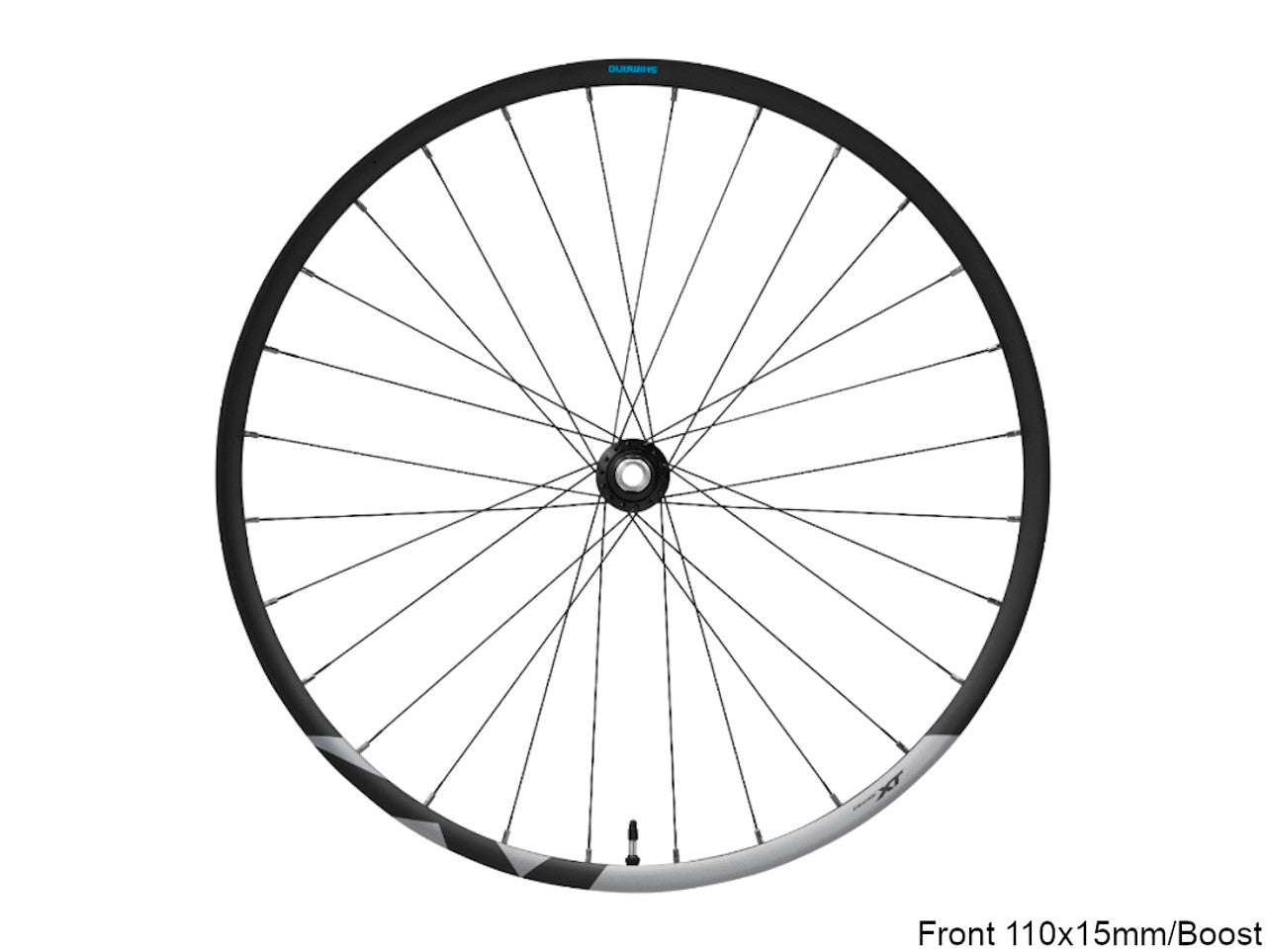

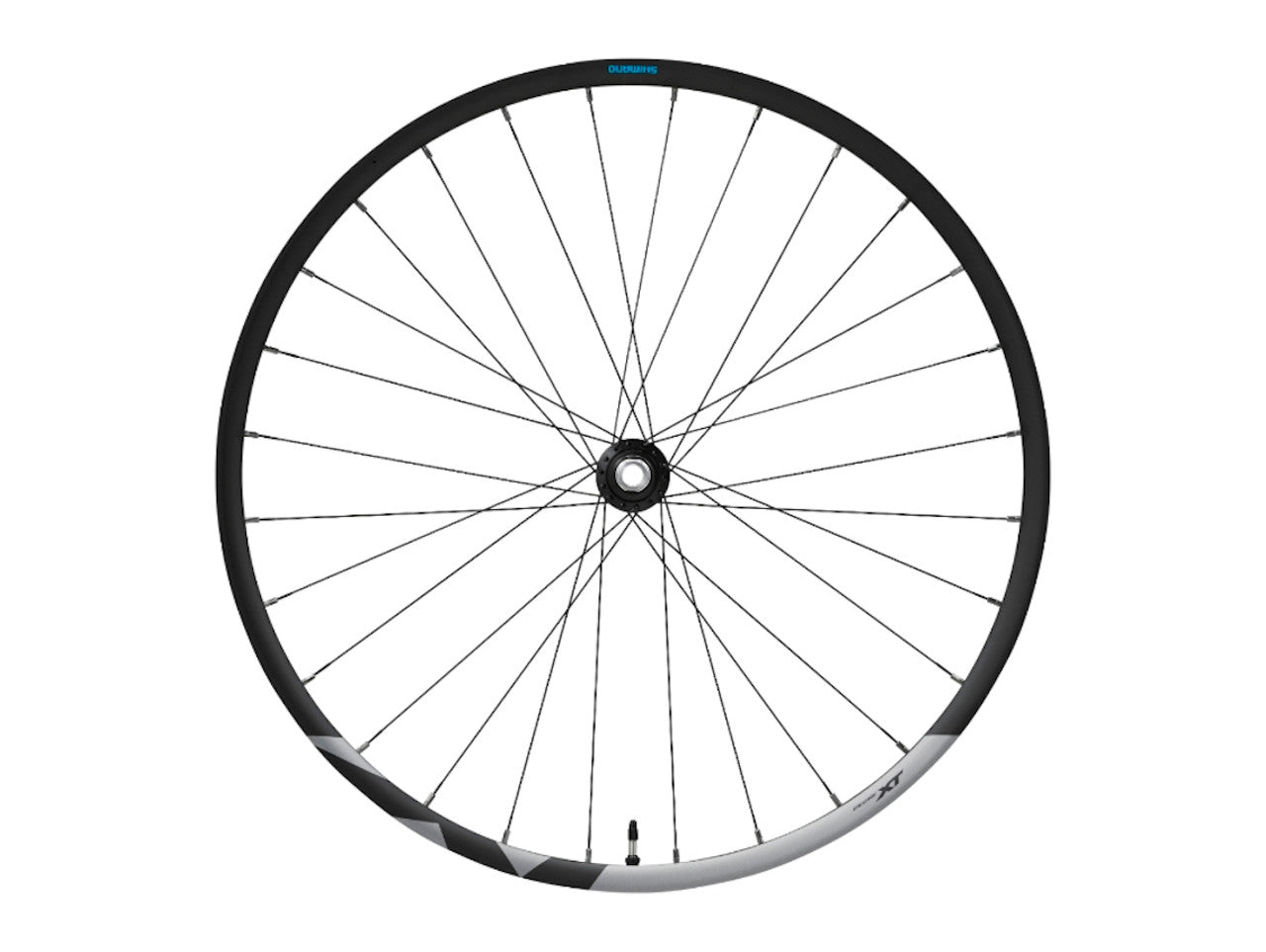

Front
Reliable high-speed cornering
Front 15 mm E-THRU axle +15% torsional stiffness +25% transverse shear stiffness (vs 9 mm quick release)
Simple setup and reliable trail performance
28 J-bend spokes (2.0-1.8-2.0 double butted)
External rim width: 34.7 mm

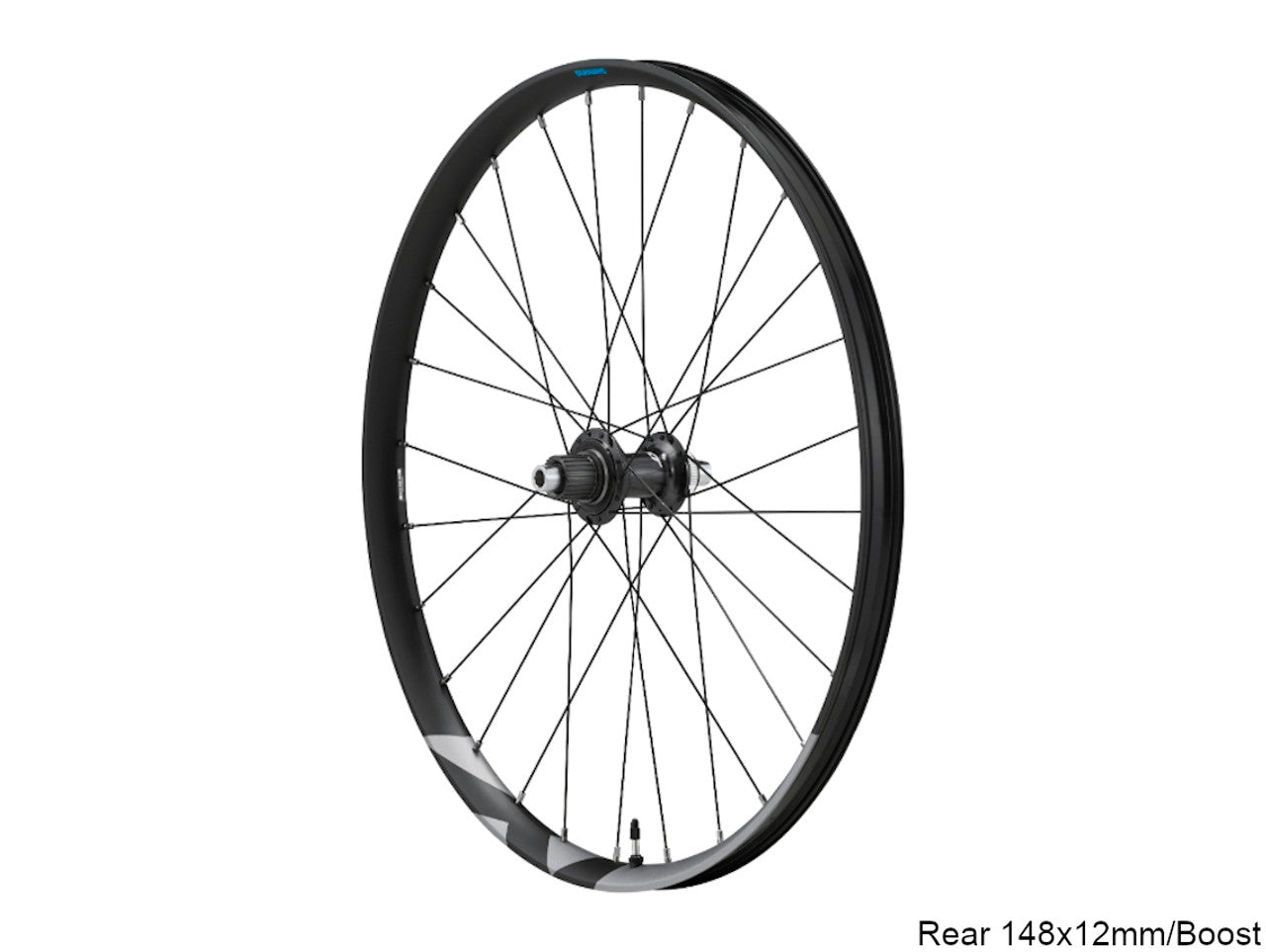

Rear
Reliable high-speed cornering
Faster acceleration amplifies riding excitement
Smaller spline diameter for 10T top gear by MICRO SPLINE
Simple setup and reliable trail performance
Rear 12 mm E-THRU axle
Zero dish
28 J-bend spokes (2.0-1.8-2.0 double butted)
External rim width: 34.7 mm
Specifications
Front
Rear
Average Weight
875
1016
Spokes
J-Bend
J-Bend
Quick Engagement
-
X (max 7.0 deg.)
Brake Type
Center Lock Disc
Center Lock Disc
Axle Fixing Method
15 mm E-Thru
12 mm E-Thru
O.L.D.
110mm
148mm
Rear Speeds
-
12
Axle
Fixing Method: 15mm E-Thru
Thru Axle Length x Inner Diameter: 110x15
Fixing Method: 12mm E-Thru
Thru Axle Length x Inner Diameter: 148x12
Bearing
Cone: CBN
Stainless Ball: Yes
Cone:CBN & Polish
Rim
Height: 19.8mm
Offset Rim: Yes
Requires Rim Tape: X (30-584)
Rim Joint: Welding
Width: 34.7mm
Height: 19.8mm
Offset Rim: Yes
Requires Rim Tape: X (30-584)
Rim Joint: Welding
Width: 34.7mm
Seal
Hub:Labyrinth & Contact
Freehub Body: Contact
Hub:Labyrinth & Contact
Spokes
Butted: 2.0-1.8
Number: 28
Butted: 2.0-1.8
Number: 28
Tyre
Recommended size:27.5 x 2.25 - 2.60
Type: Tubeless
Recommended size:27.5 x 2.25 - 2.60
Type: Tubeless
Wheel Size
584 x 30C (650B = 27.5 inch)
584 x 30C (650B = 27.5 inch)
