Product Details
Faster, Further, And More Fun

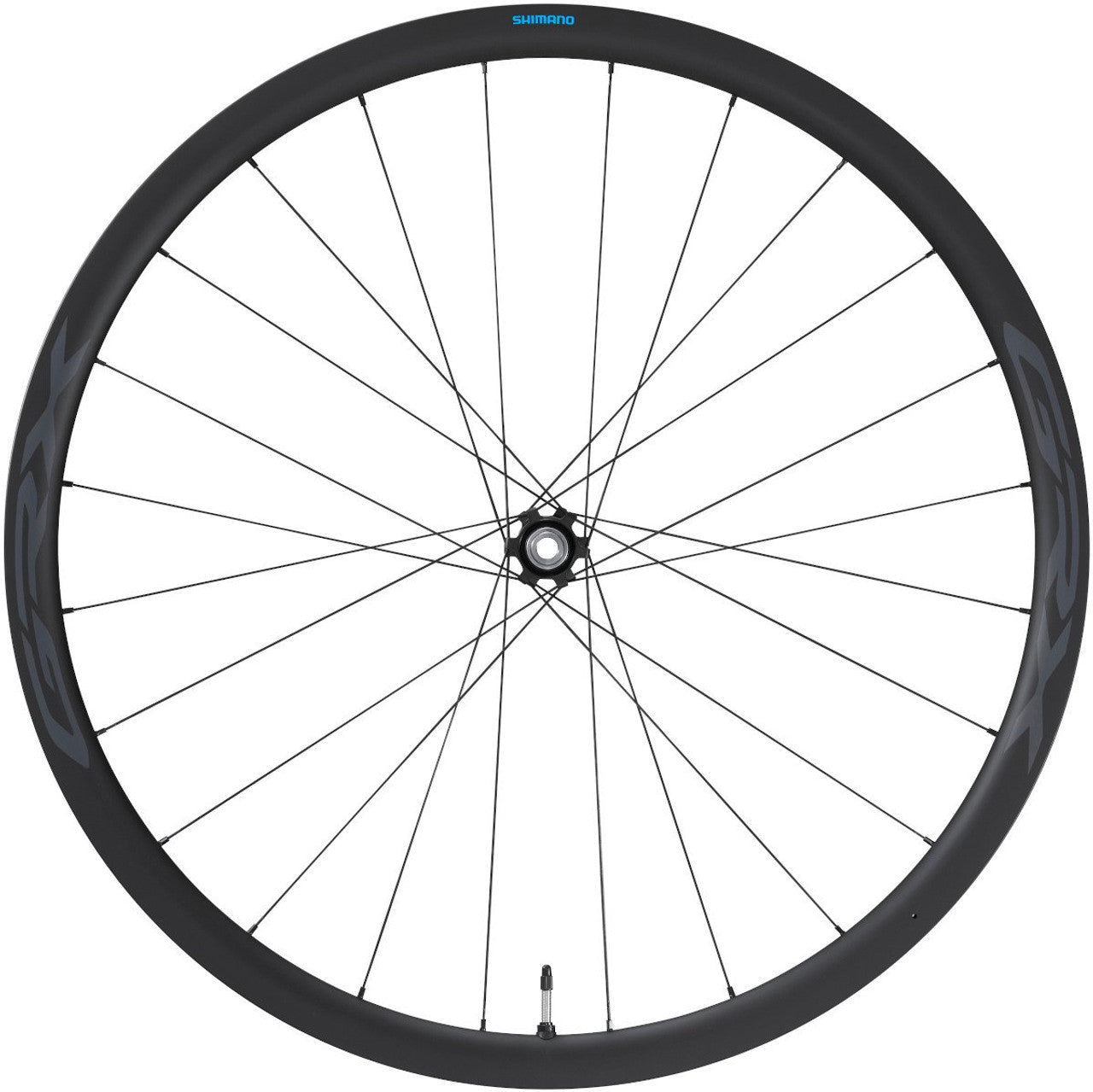

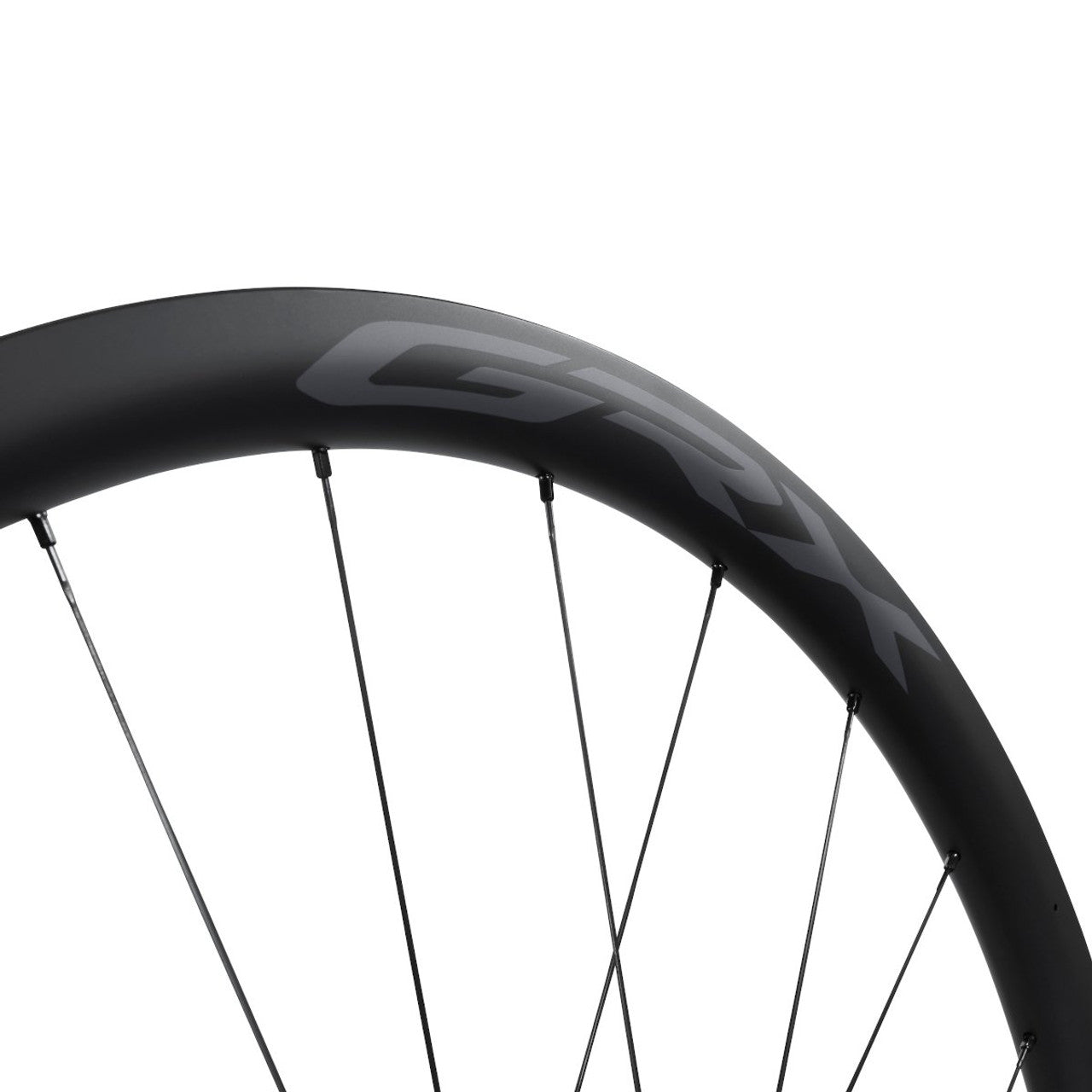

The new Shimano GRX Carbon Wheel supports gravel rides that are faster, further, and more fun. Wider tyres need wider rims to maintain lateral tyre stability at low air pressures. Shimano studied the complicated relationship between tyre size, rim width, air pressure, and tyre lateral rigidity to optimize the GRX rim width for 32-50c tyres. In addition, they pursued the best balance of rim weight, strength, and profile to deliver an exceptional gravel wheel. Get your Shimano GRX WH-RX870 Carbon DB Tubeless Front Gravel Wheel today while stocks last at this price.
Key Highlights:
. First SHIMANO GRX carbon wheel
. 32mm height full carbon Rim
. Tyre Type Tubeless
. Wheel Size 622 x 25C (700C)

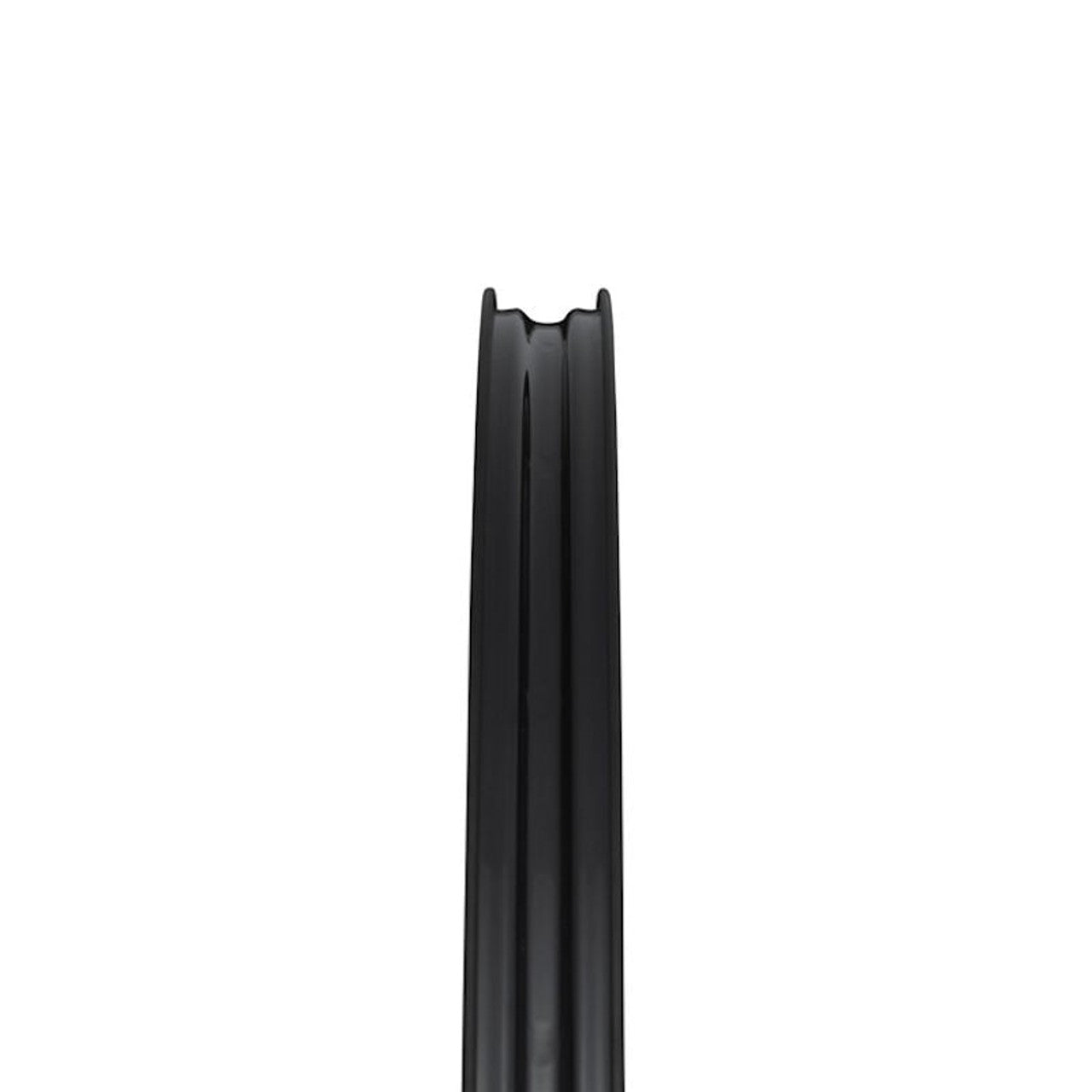

. Internal rim width: 25mm
. Recommended tyre size: 32-622 - 50-622
. Road 11 and 12-speed compatible
Centre Lock Braking System
The Centre Lock system makes an easy rotor installation possible with spline mount and a lock ring. The lock ring mounting system reduces the total working hours by shortening the amount of time of both installation and de-installation. In addition, the secure fixing by the spline mount enhances precision and rigidity while improving braking efficiency.

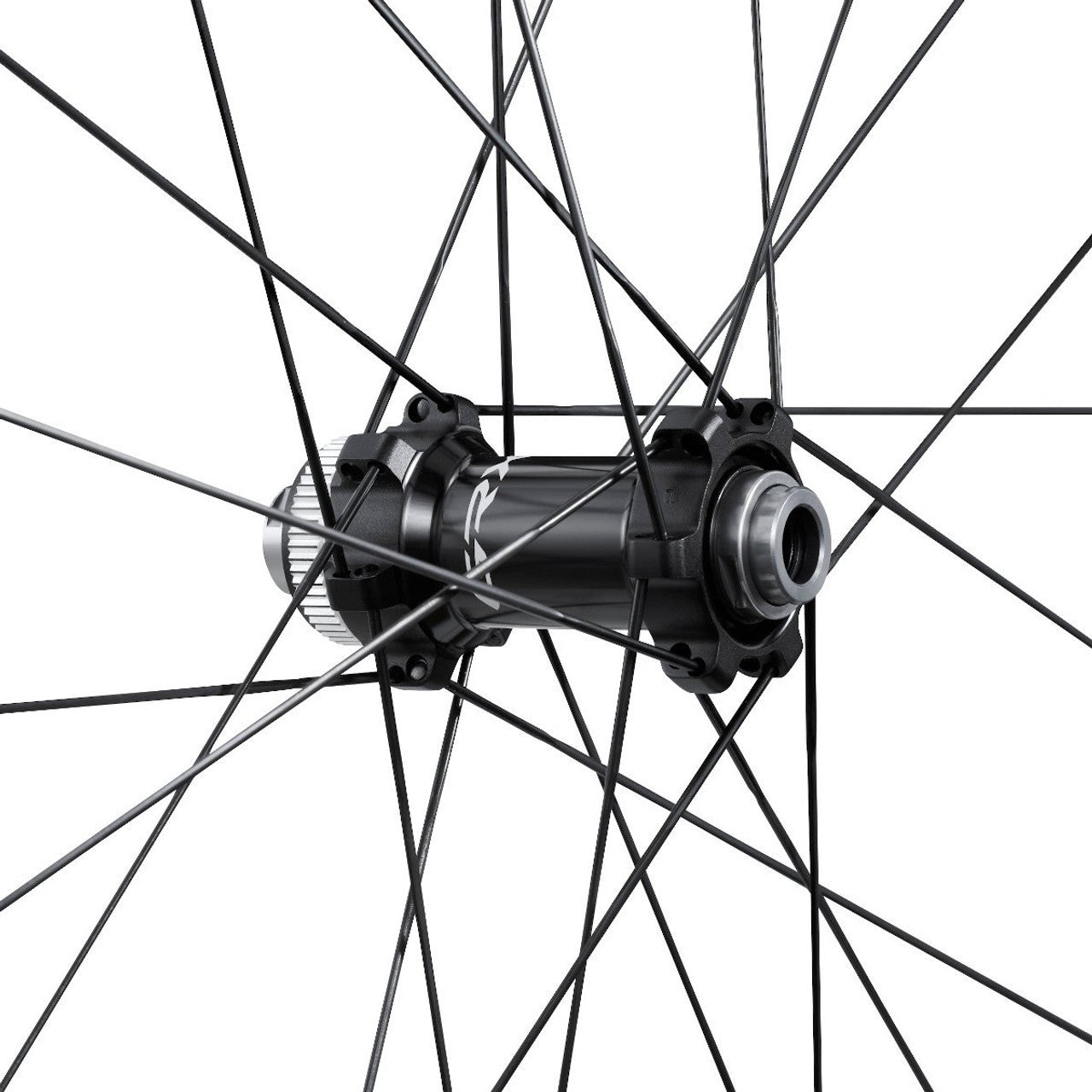

E-Thru Axle
The tool-less type thru-axle skewer system optimizes rigidity and weight balance and enables easy operation with a reliable internal cam mechanism. The 15mm thru-axle system is 15% stiffer torsionally and 25% stiffer in transverse shear than a traditional 9mm quick release front axle system. High rigidity is secured while keeping the optimum weight balance. The E-THRU axle hub system minimizes the distortion of suspension while maintaining lightweight for riding around sharp corners at high speed. An 8mm thru-axle system for the trekking/hybrid hub and dynamo hub and a 12mm thru-axle system for the rear are also available.. Model No: WH-RX870-TL-F12-700c
. Series: GRX 11-Speed
. Average weight: 639g
. Spokes Straight Pull: YES
. Brake Type: CENTER LOCK disc brake
. Axle Fixing Method: E-THRU
. O.L.D.: 100mm
. Thru Axle (length x inner diameter) 100mm x 12mm
. Disc Mount 140mm Disc brake rotor compatible: YES
. Disc Mount Centre Lock: YES
. Front/Rear Wheel: Front
. Reflector AS: CATEYE RR-550-WUA SW
. Reflector DIN: CATEYE RR-317-WUA SW
. Reflector JIS/CPSC: CATEYE RR-550-WUW SW
. Rim Height: 32mm
. Rim Requires Rim Tape: YES
. Seal Hub: Contact
. Spokes Bladed: YES
. Spokes Butted: YES
. Spokes Number: 24
. Tyre Recommended Size: 32-622 - 50-622
. Tyre Type: Tubeless
. Wheel Size: 622 x 25C (700c)
. Model Name: WH-RX870-TL
. Rim External Width: 30.7mm
. Rim Internal Width: 25mm
. Spokes Diameter: 2.0-1.6-2.0mm
. Specification: F12-700c
