Product Details

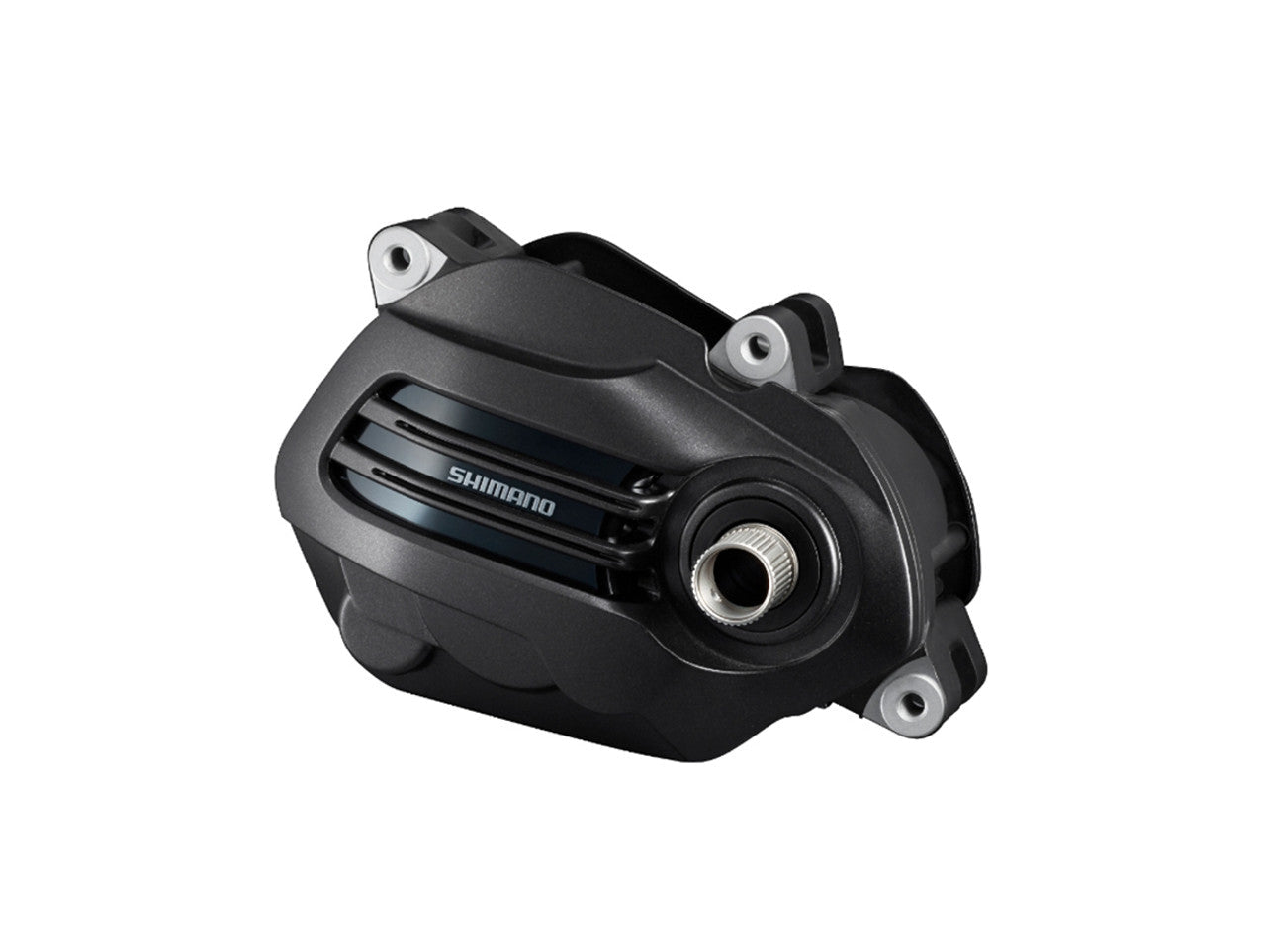

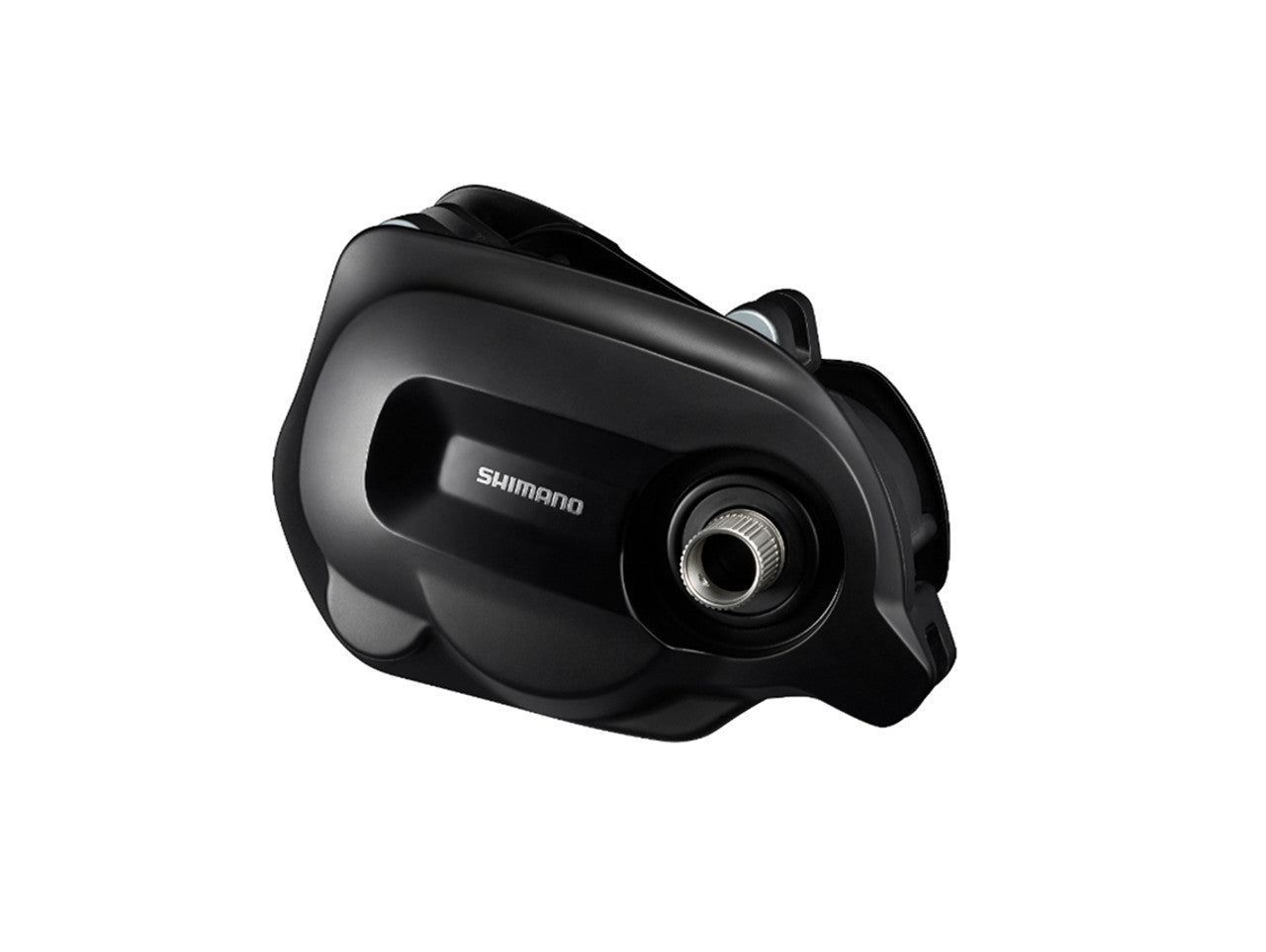

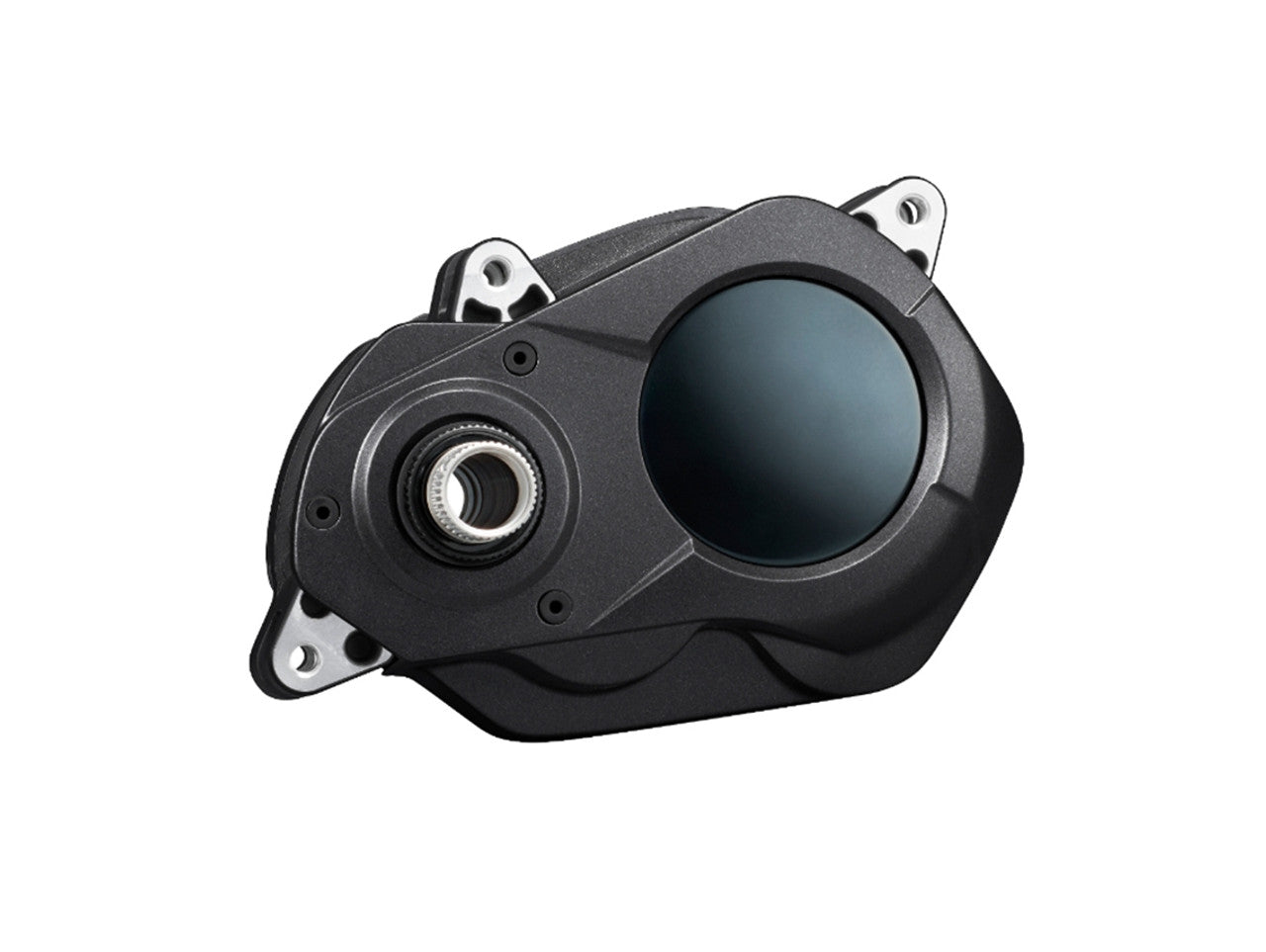

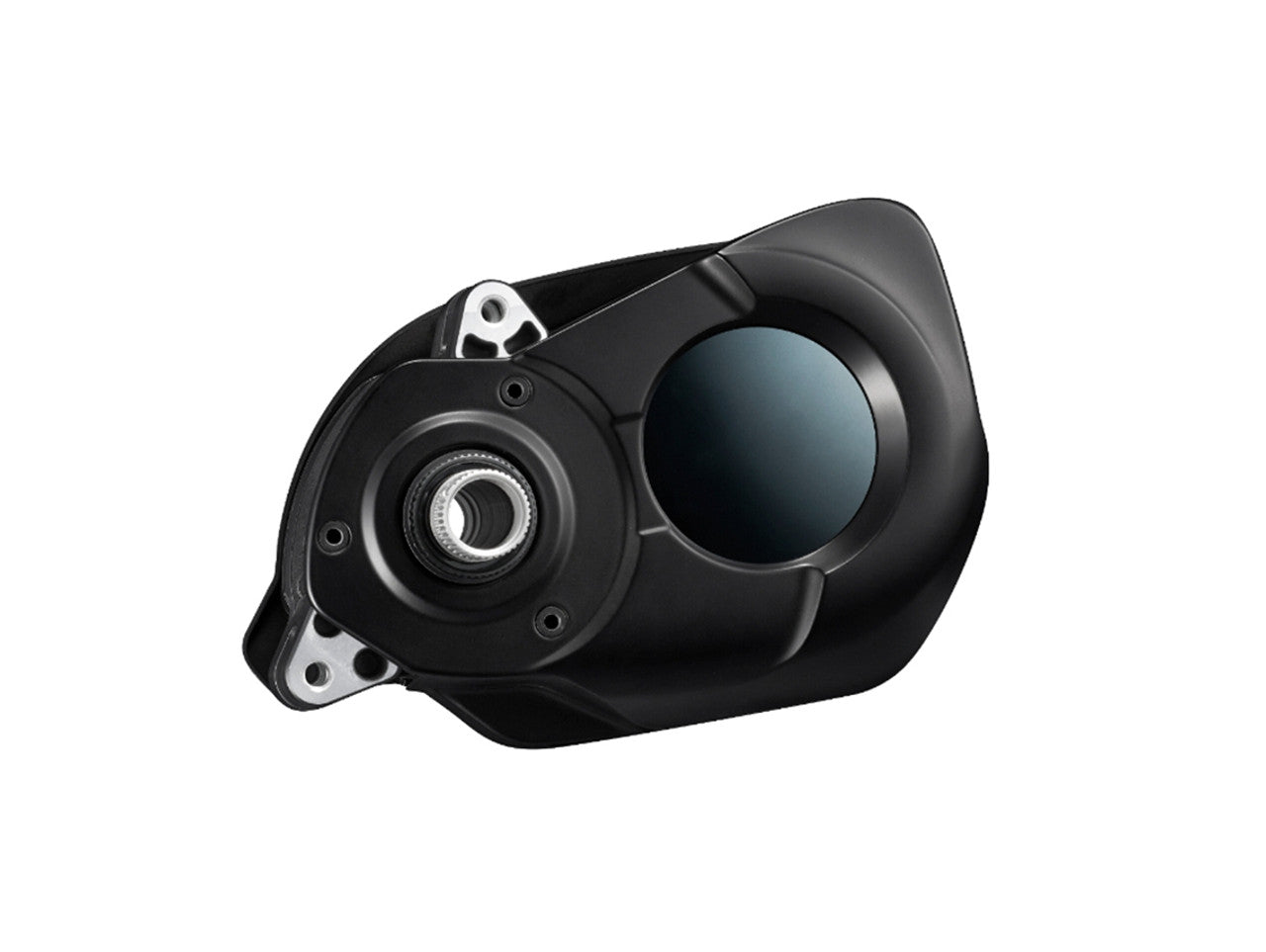

The Shimano Steps E6100 Drive Unit provides full-automatic shifting for a more natural riding experience.
Its range is increased thanks to efficient battery consumption and its cutoff speed is adjustable via E-Tube Project. The short rear center enhances maneuverability and the it features a symmetrical, narrow Q-factor.
Features
Easy to access cable terminal without removing chainring and chain case
Integrated drivetrain and assist
Full-automatic shifting for a more natural riding experience
Efficient battery consumption increases riding range
Maximum speed adjustable within 15-25 km/h by E-Tube Project when at "COMFORT" assist riding characteristic
Optimized pedaling environment
Narrow and Symmetrical Q-factor
Shorter rear center provides responsive and maneuverable handling
Compact and lightweight
Technologies
E-Tube Project:E-Tube is Shimano's "service" that uses websites or apps to maximize the enjoyment of riding a bicycle by connecting the riders, the bicycles and Shimano.
Shimano's genuine application E-Tube Project for Mobile allows you to customize your bike, update firmware, and maintain it by connecting it wirelessly to your bike. You can also get the more detailed bike maintenance by connecting to your bike by wire with E-Tube Project for Windows V4 application.
Easily update to the latest firmware with the user-friendly interface
Set two e-bike assist profiles to your preference, and customize the assist characteristics according to the riding situation
Design your favorite DI2 gearshift in Synchronized Shift
Easily adjust both front and rear derailleurs via application
Specifications
Series SHIMANO STEPS E6100 Series Compatible Brake Type V-BRAKE, Roller brake, Disc brake Colour Standard Average Weight 2.76kg Remarks * Set by E-TUBE PROJECT ** By using SM-DUE10/SM-DUE11 *** Only in combination with DI2 Motor Type Brushless motor Position Mid ship Compatible Wheel Size (mm) 1,300 - 3,000 Continuous Rated Power (Watt) 250 Maximum torque (Nm) 60 Rated Voltage 36 V DC Assist mode High, ECO, Normal Power supply for front/ rear light 12 V DC Compatible spindle type 24mm 2pinch bolt narrow DI2 compatible Internal geared hub
Rear derailleur E-tube connector (pcs) 0 E-tube port (pcs) 2 Maximum current supply front and rear light total (A) 2 Port for Speed Sensor (pcs) SD50 type 1 Terminal for Light (pcs) 1 SD300 connector (pcs) 0 SD300 port (pcs) 0 SD50 connector (pcs) 0 SD50 port (pcs) 2
