TranzX EDP01 Wireless Electronic Dropper Seatpost 150mm Travel 30.9mm x 445mm

TranzX EDP01 Wireless Electronic Dropper Seatpost 150mm Travel 30.9mm x 445mm

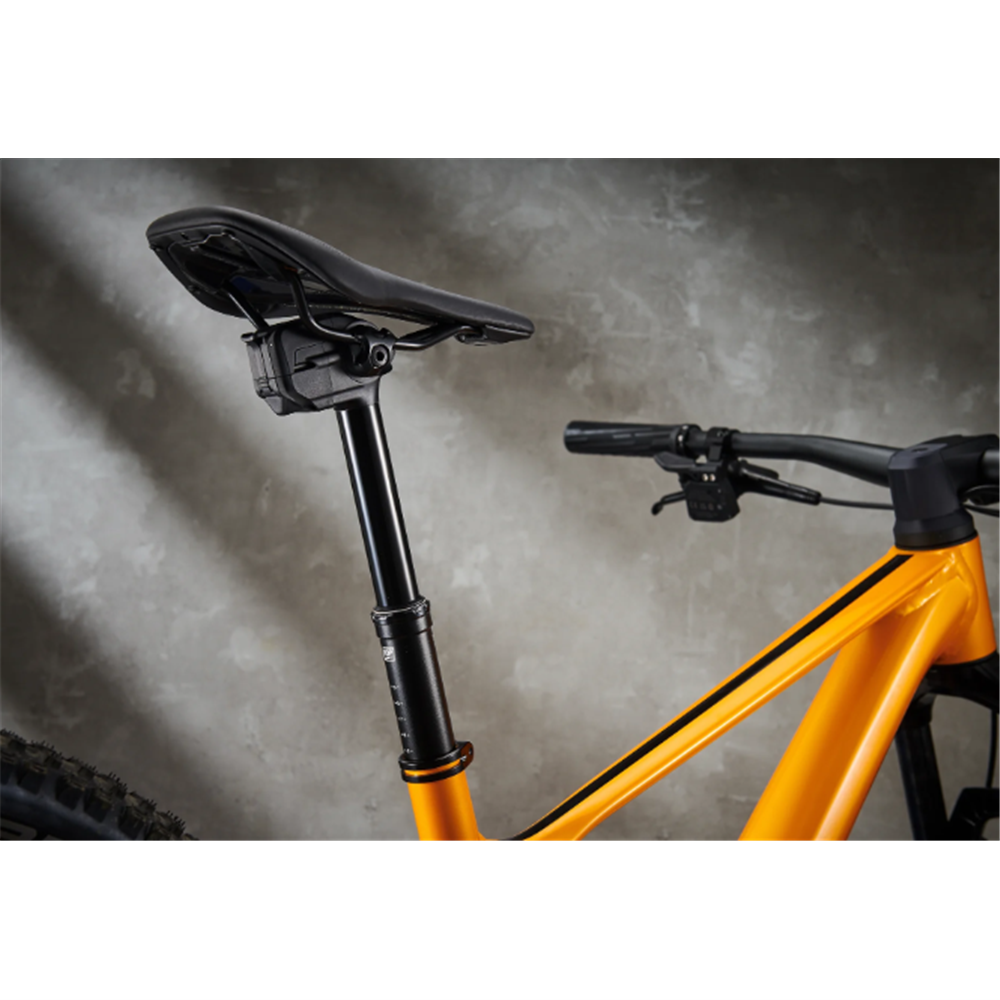

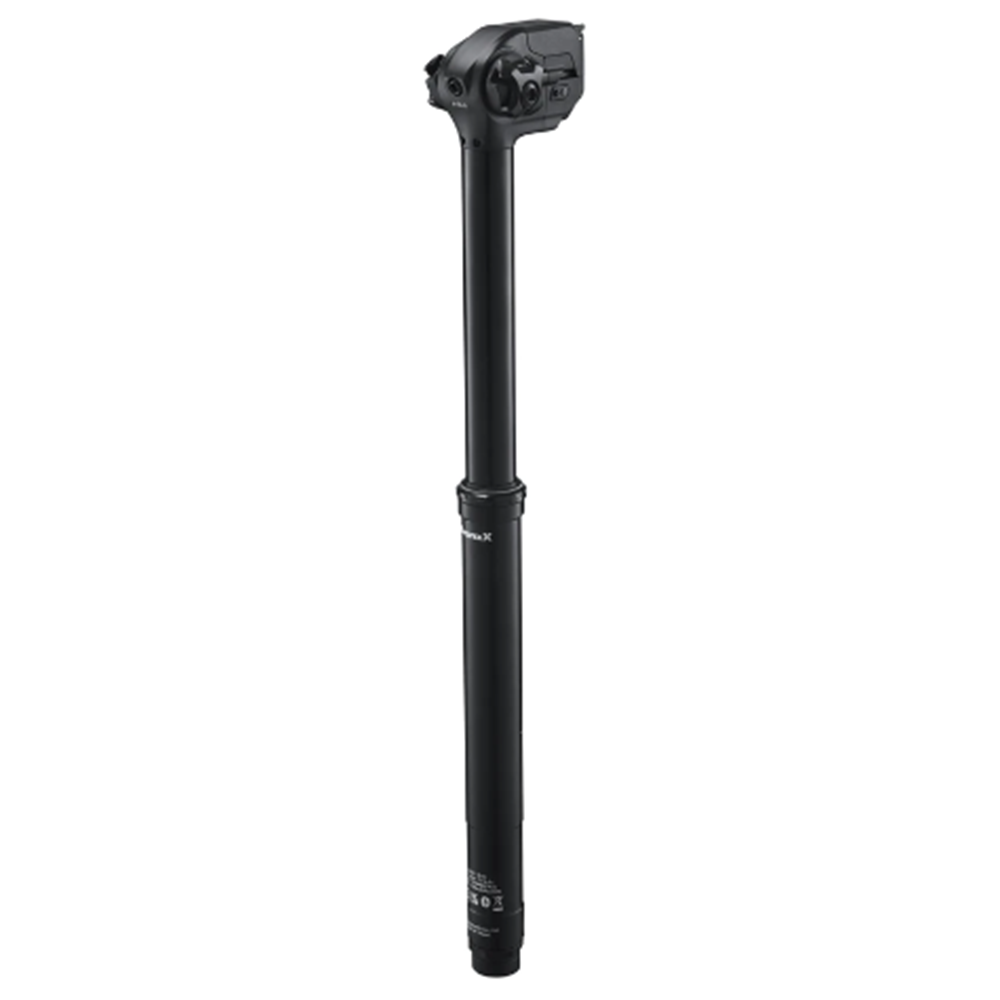

The TranzX EDP01 Wireless Electronic Dropper Post brings modern wireless convenience to your bike setup, eliminating the need for cables between the remote and the seatpost.

Using Bluetooth 5.0 connectivity, the EDP01 remote communicates wirelessly with the dropper post for fast and reliable height adjustment at the push of a button. With no cable routing required, installation is simple and clean while also reducing long-term maintenance.

The dropper features a sealed adjustable air cartridge for smooth operation and an automotive-grade IPX6 water resistance rating to help handle wet and demanding riding conditions. A rechargeable lithium-ion battery powers the system and delivers thousands of activations per charge.

Designed with a 0mm offset post head and a secure 2-bolt saddle clamp, the EDP01 offers stable saddle positioning and dependable performance for modern trail and mountain bikes.

Key Features:

• Wireless electronic dropper post with Bluetooth 5.0 connectivity

• 150mm travel for on-the-fly saddle height adjustment

• No cable routing required for cleaner installation

• Sealed adjustable air cartridge for smooth operation

• IPX6 water resistance for reliable performance in wet conditions

• Rechargeable lithium-ion battery system

• 0mm offset post head with secure 2-bolt saddle clamp

• Handlebar remote powered by CR2032 battery

Compatibility:

Designed for bikes using a 30.9mm seatpost diameter.

Specifications:

• Model: EDP01

• Type: Wireless Electronic Dropper Seatpost

• Travel: 150mm

• Diameter: 30.9mm

• Length: 445mm

• Offset: 0mm

• Connectivity: Bluetooth 5.0

• Water Resistance: IPX6

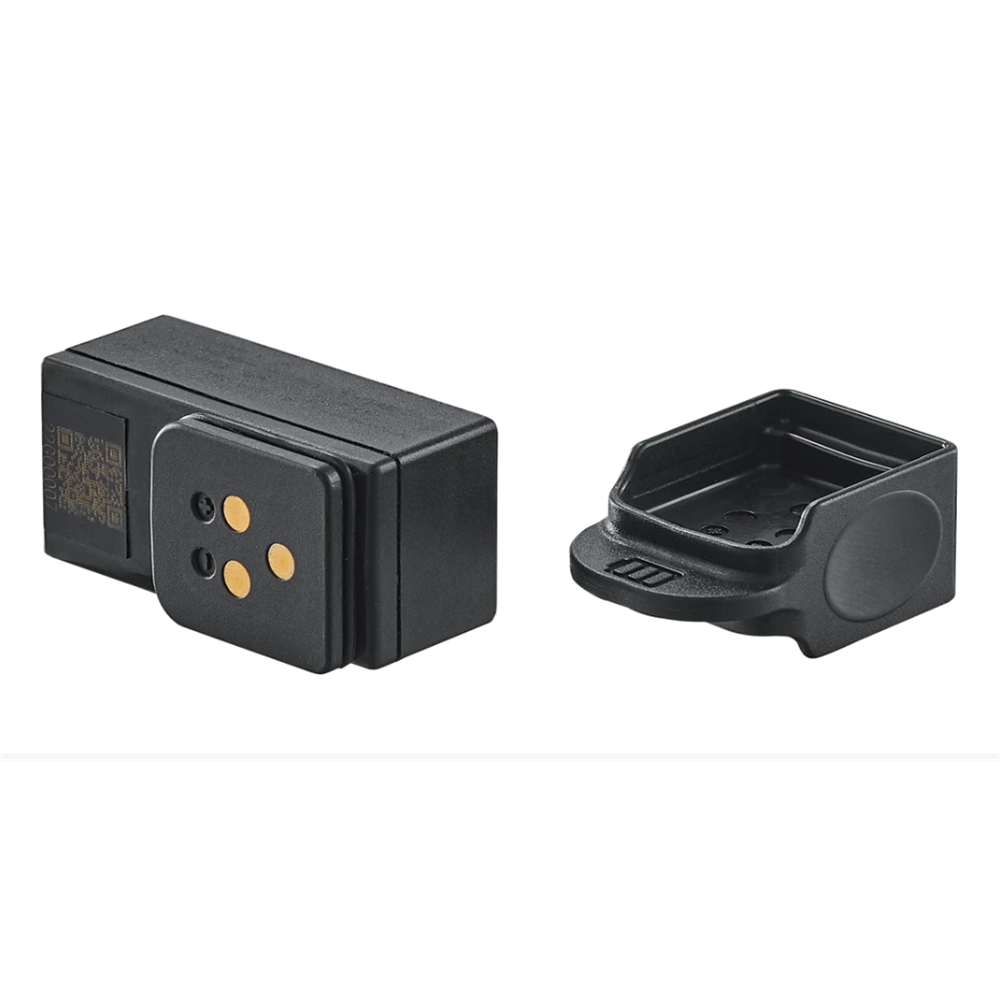

Battery:

• Battery Type: Rechargeable Lithium-ion

• Battery Voltage: 7.4V (nominal)

• Battery Capacity: 240mAh

• Battery Size: 40.5 × 19.0 × 21.2mm

• Battery Weight: 20.5g

• Estimated Range: Over 6,000 activations per full charge

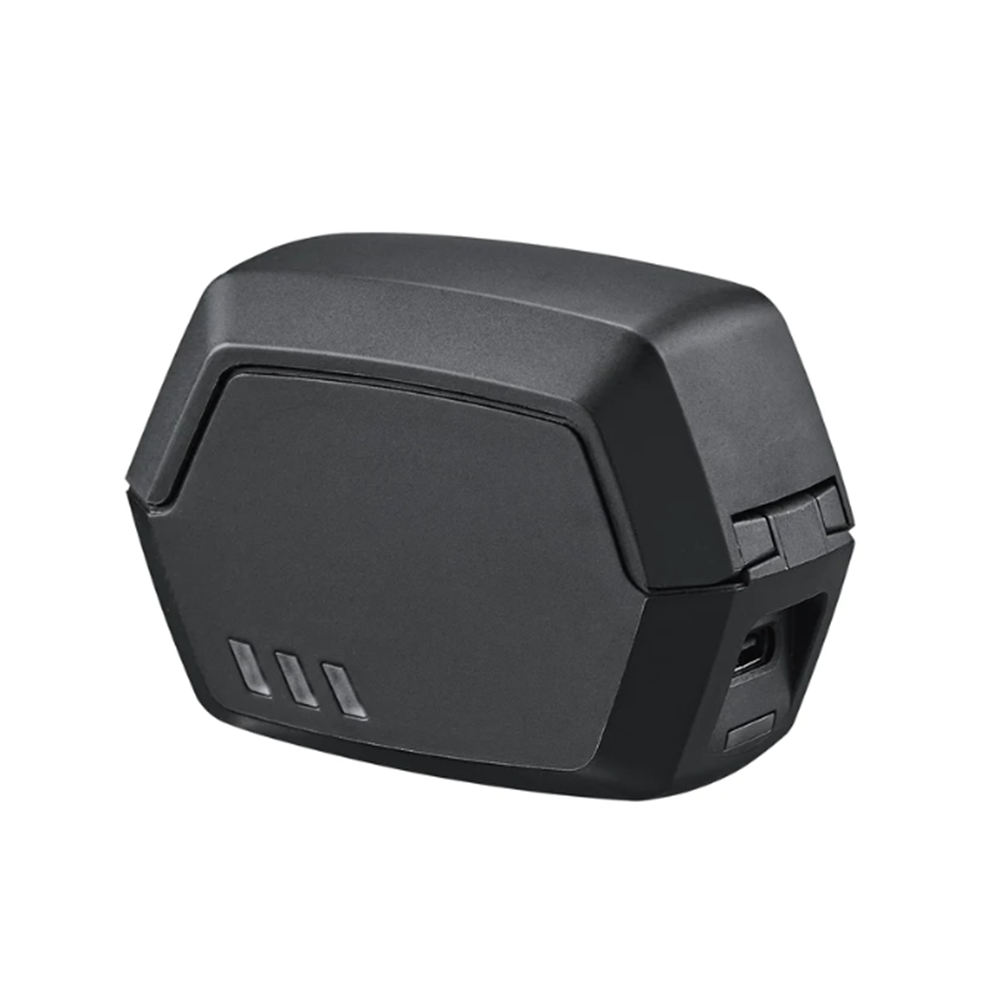

Charger:

• Charge Voltage: 8.4V

• Charge Current: 240mA

• Charge Time: Approx. 90 minutes

• Power Source: 5V DC USB

• Plug Type: USB Type-C

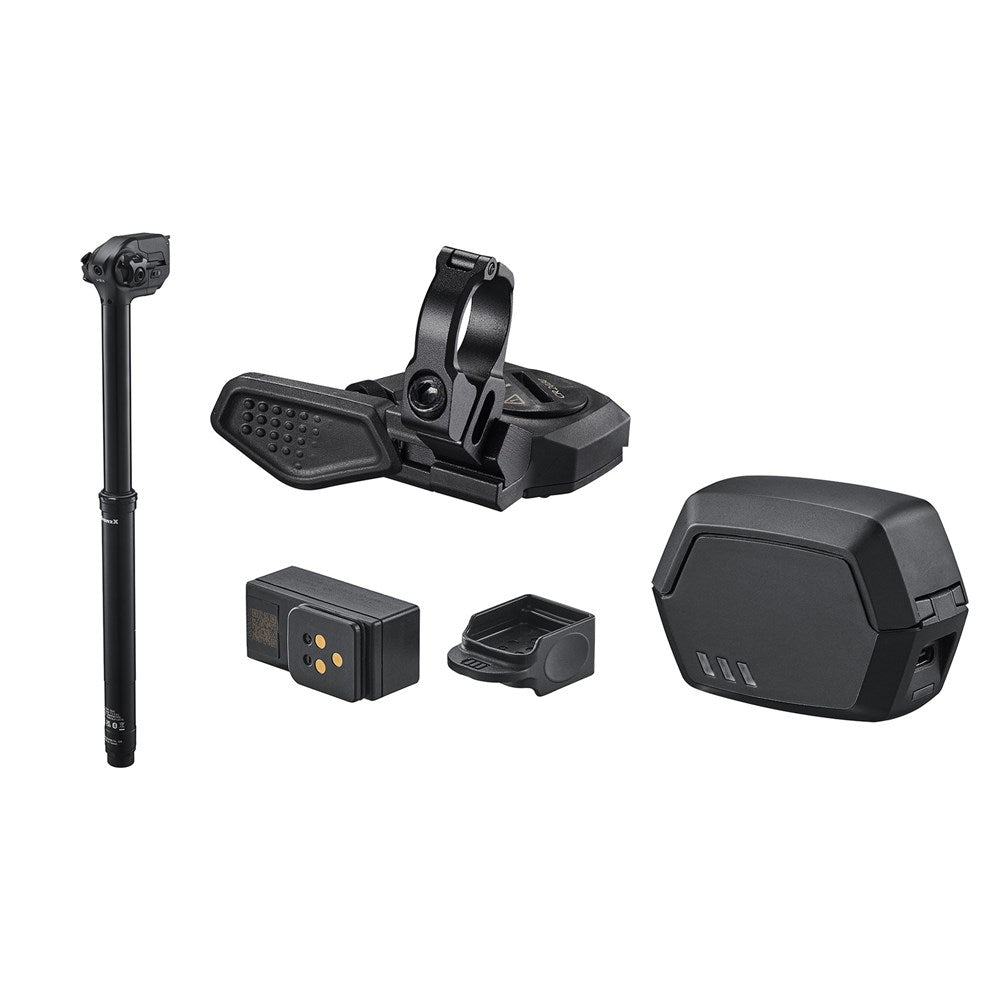

What’s in the Box:

• TranzX EDP01 Wireless Dropper Post

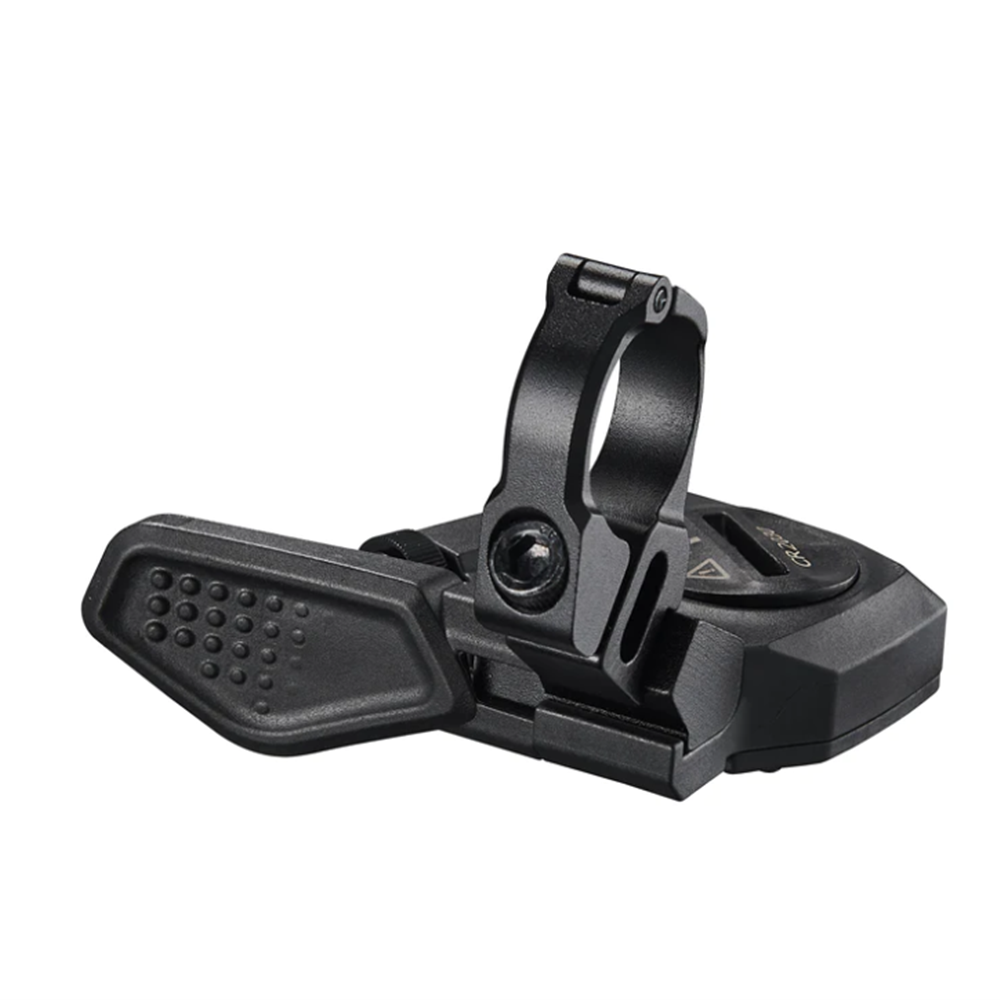

• EDP01 Remote Lever with 22mm Clamp

• Rechargeable Lithium-ion Battery

• Charging Case

• Required Charging Cables

• CR2032 Battery for Remote

WARNING — KEEP BATTERIES OUT OF REACH OF CHILDREN
